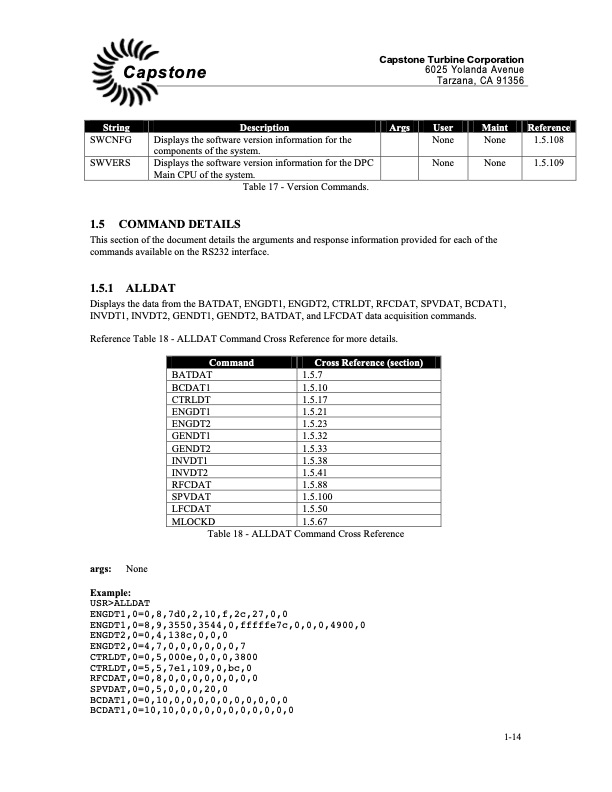

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 None None None None String Description Args User Maint Reference SWCNFG SWVERS Displays the software version information for the components of the system. Displays the software version information for the DPC Main CPU of the system. 1.5.108 1.5.109 1.5 COMMAND DETAILS Table 17 - Version Commands. This section of the document details the arguments and response information provided for each of the commands available on the RS232 interface. 1.5.1 ALLDAT Displays the data from the BATDAT, ENGDT1, ENGDT2, CTRLDT, RFCDAT, SPVDAT, BCDAT1, INVDT1, INVDT2, GENDT1, GENDT2, BATDAT, and LFCDAT data acquisition commands. Reference Table 18 - ALLDAT Command Cross Reference for more details. Command Cross Reference (section) BATDAT BCDAT1 CTRLDT ENGDT1 ENGDT2 GENDT1 GENDT2 INVDT1 INVDT2 RFCDAT SPVDAT LFCDAT MLOCKD 1.5.7 1.5.10 1.5.17 1.5.21 1.5.23 1.5.32 1.5.33 1.5.38 1.5.41 1.5.88 1.5.100 1.5.50 1.5.67 args: None Example: Table 18 - ALLDAT Command Cross Reference USR>ALLDAT ENGDT1,0=0,8,7d0,2,10,f,2c,27,0,0 ENGDT1,0=8,9,3550,3544,0,fffffe7c,0,0,0,4900,0 ENGDT2,0=0,4,138c,0,0,0 ENGDT2,0=4,7,0,0,0,0,0,0,7 CTRLDT,0=0,5,000e,0,0,0,3800 CTRLDT,0=5,5,7e1,109,0,bc,0 RFCDAT,0=0,8,0,0,0,0,0,0,0,0 SPVDAT,0=0,5,0,0,0,20,0 BCDAT1,0=0,10,0,0,0,0,0,0,0,0,0,0 BCDAT1,0=10,10,0,0,0,0,0,0,0,0,0,0 1-14PDF Image | Engineering Specification Communication Protocol
