Engineering Specification Communication Protocol

PDF Publication Title:

Engineering Specification Communication Protocol ( engineering-specification-communication-protocol )

Previous Page View | Next Page View | Return to Search List

Text from PDF Page: 012

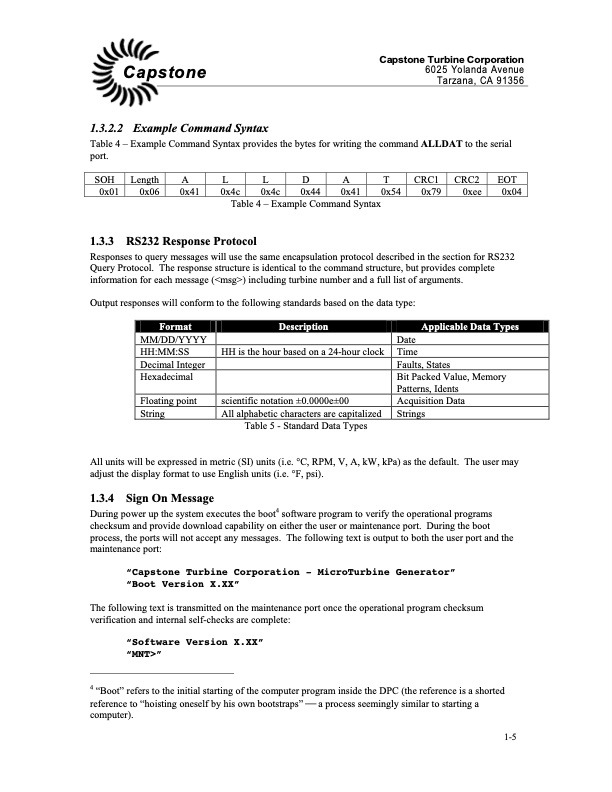

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.3.2.2 Example Command Syntax Table 4 – Example Command Syntax provides the bytes for writing the command ALLDAT to the serial port. SOH Length A L L D A T CRC1 CRC2 EOT 0x01 0x06 0x41 0x4c 0x4c 0x44 0x41 0x54 0x79 0xee 0x04 Table 4 – Example Command Syntax 1.3.3 RS232 Response Protocol Responses to query messages will use the same encapsulation protocol described in the section for RS232 Query Protocol. The response structure is identical to the command structure, but provides complete information for each message () including turbine number and a full list of arguments. Output responses will conform to the following standards based on the data type: Format Description Applicable Data Types MM/DD/YYYY HH:MM:SS Decimal Integer Hexadecimal Floating point String HH is the hour based on a 24-hour clock scientific notation ±0.0000e±00 All alphabetic characters are capitalized Table 5 - Standard Data Types Date Time Faults, States Bit Packed Value, Memory Patterns, Idents Acquisition Data Strings All units will be expressed in metric (SI) units (i.e. °C, RPM, V, A, kW, kPa) as the default. The user may adjust the display format to use English units (i.e. °F, psi). 1.3.4 Sign On Message During power up the system executes the boot4 software program to verify the operational programs checksum and provide download capability on either the user or maintenance port. During the boot process, the ports will not accept any messages. The following text is output to both the user port and the maintenance port: “Capstone Turbine Corporation - MicroTurbine Generator” “Boot Version X.XX” The following text is transmitted on the maintenance port once the operational program checksum verification and internal self-checks are complete: “Software Version X.XX” “MNT>” 4 “Boot” refers to the initial starting of the computer program inside the DPC (the reference is a shorted reference to “hoisting oneself by his own bootstraps”  a process seemingly similar to starting a computer). 1-5
