PDF Publication Title:
Text from PDF Page: 011

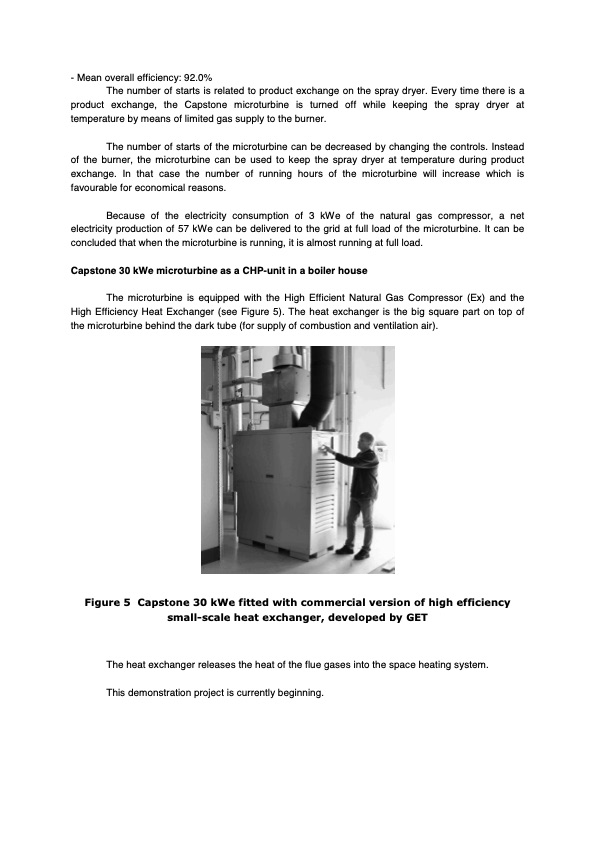

- Mean overall efficiency: 92.0% The number of starts is related to product exchange on the spray dryer. Every time there is a product exchange, the Capstone microturbine is turned off while keeping the spray dryer at temperature by means of limited gas supply to the burner. The number of starts of the microturbine can be decreased by changing the controls. Instead of the burner, the microturbine can be used to keep the spray dryer at temperature during product exchange. In that case the number of running hours of the microturbine will increase which is favourable for economical reasons. Because of the electricity consumption of 3 kWe of the natural gas compressor, a net electricity production of 57 kWe can be delivered to the grid at full load of the microturbine. It can be concluded that when the microturbine is running, it is almost running at full load. Capstone 30 kWe microturbine as a CHP-unit in a boiler house The microturbine is equipped with the High Efficient Natural Gas Compressor (Ex) and the High Efficiency Heat Exchanger (see Figure 5). The heat exchanger is the big square part on top of the microturbine behind the dark tube (for supply of combustion and ventilation air). Figure 5 Capstone 30 kWe fitted with commercial version of high efficiency small-scale heat exchanger, developed by GET The heat exchanger releases the heat of the flue gases into the space heating system. This demonstration project is currently beginning.PDF Image | DEMONSTRATION OF CAPSTONE MICROTURBINES INCLUDING HIGH EFFICIENCY HEAT EXCHANGER, GAS SAFEGUARD MODULE AND NATURAL GAS COMPRESSOR, DEVELOPED BY GASUNIE ENGINEERING & TECHNOLOGY
PDF Search Title:
DEMONSTRATION OF CAPSTONE MICROTURBINES INCLUDING HIGH EFFICIENCY HEAT EXCHANGER, GAS SAFEGUARD MODULE AND NATURAL GAS COMPRESSOR, DEVELOPED BY GASUNIE ENGINEERING & TECHNOLOGYOriginal File Name Searched:
add10459.pdfDIY PDF Search: Google It | Yahoo | Bing
