PDF Publication Title:
Text from PDF Page: 009

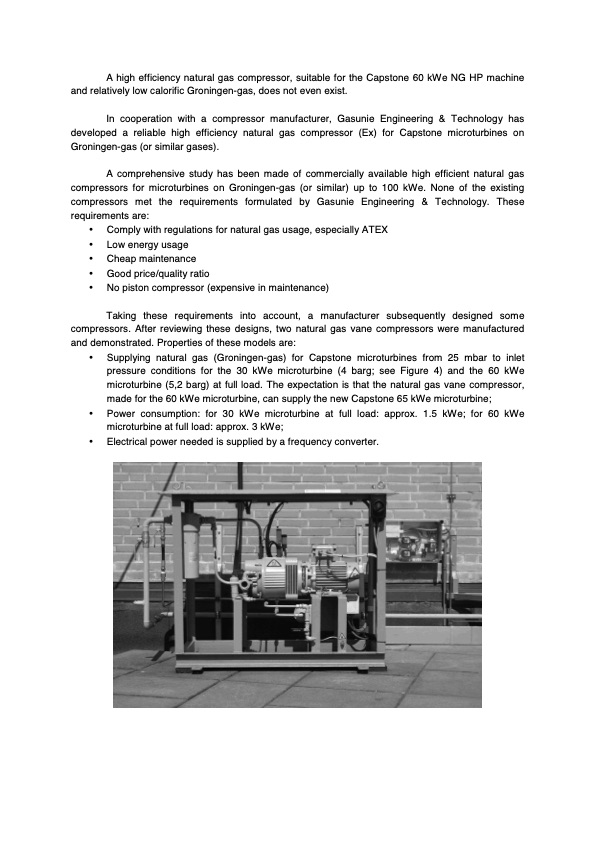

A high efficiency natural gas compressor, suitable for the Capstone 60 kWe NG HP machine and relatively low calorific Groningen-gas, does not even exist. In cooperation with a compressor manufacturer, Gasunie Engineering & Technology has developed a reliable high efficiency natural gas compressor (Ex) for Capstone microturbines on Groningen-gas (or similar gases). A comprehensive study has been made of commercially available high efficient natural gas compressors for microturbines on Groningen-gas (or similar) up to 100 kWe. None of the existing compressors met the requirements formulated by Gasunie Engineering & Technology. These requirements are: • Comply with regulations for natural gas usage, especially ATEX • Low energy usage • Cheap maintenance • Good price/quality ratio • No piston compressor (expensive in maintenance) Taking these requirements into account, a manufacturer subsequently designed some compressors. After reviewing these designs, two natural gas vane compressors were manufactured and demonstrated. Properties of these models are: • Supplying natural gas (Groningen-gas) for Capstone microturbines from 25 mbar to inlet pressure conditions for the 30 kWe microturbine (4 barg; see Figure 4) and the 60 kWe microturbine (5,2 barg) at full load. The expectation is that the natural gas vane compressor, made for the 60 kWe microturbine, can supply the new Capstone 65 kWe microturbine; • Power consumption: for 30 kWe microturbine at full load: approx. 1.5 kWe; for 60 kWe microturbine at full load: approx. 3 kWe; • Electrical power needed is supplied by a frequency converter.PDF Image | DEMONSTRATION OF CAPSTONE MICROTURBINES INCLUDING HIGH EFFICIENCY HEAT EXCHANGER, GAS SAFEGUARD MODULE AND NATURAL GAS COMPRESSOR, DEVELOPED BY GASUNIE ENGINEERING & TECHNOLOGY
PDF Search Title:
DEMONSTRATION OF CAPSTONE MICROTURBINES INCLUDING HIGH EFFICIENCY HEAT EXCHANGER, GAS SAFEGUARD MODULE AND NATURAL GAS COMPRESSOR, DEVELOPED BY GASUNIE ENGINEERING & TECHNOLOGYOriginal File Name Searched:
add10459.pdfDIY PDF Search: Google It | Yahoo | Bing
