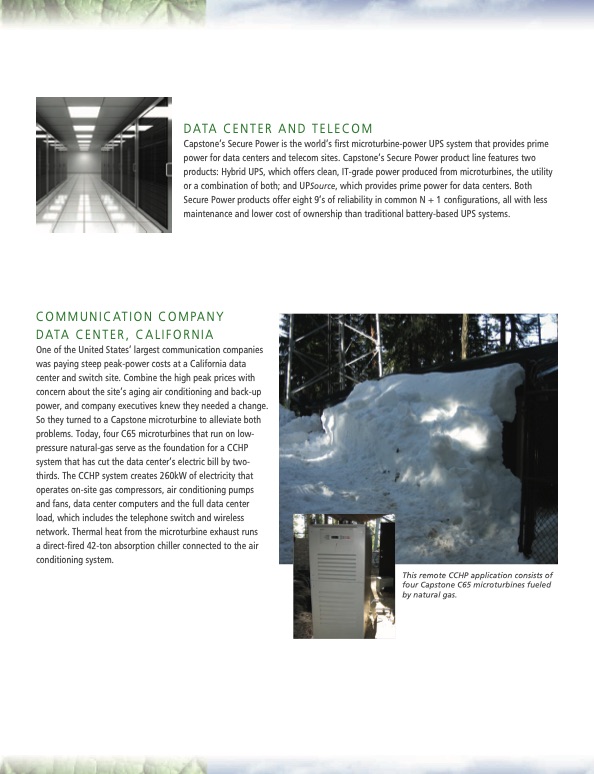

COMMUNICATION COMPANY DATA CENTER, CALIFORNIA One of the United States’ largest communication companies was paying steep peak-power costs at a California data center and switch site. Combine the high peak prices with concern about the site’s aging air conditioning and back-up power, and company executives knew they needed a change. So they turned to a Capstone microturbine to alleviate both problems. Today, four C65 microturbines that run on low- pressure natural-gas serve as the foundation for a CCHP system that has cut the data center’s electric bill by two- thirds. The CCHP system creates 260kW of electricity that operates on-site gas compressors, air conditioning pumps and fans, data center computers and the full data center load, which includes the telephone switch and wireless network. Thermal heat from the microturbine exhaust runs a direct-fired 42-ton absorption chiller connected to the air conditioning system. DATA CENTER AND TELECOM Capstone’s Secure Power is the world’s first microturbine-power UPS system that provides prime power for data centers and telecom sites. Capstone’s Secure Power product line features two products: Hybrid UPS, which offers clean, IT-grade power produced from microturbines, the utility or a combination of both; and UPSource, which provides prime power for data centers. Both Secure Power products offer eight 9’s of reliability in common N + 1 configurations, all with less maintenance and lower cost of ownership than traditional battery-based UPS systems. This remote CCHP application consists of four Capstone C65 microturbines fueled by natural gas.PDF Image | Capstone’s global presence
