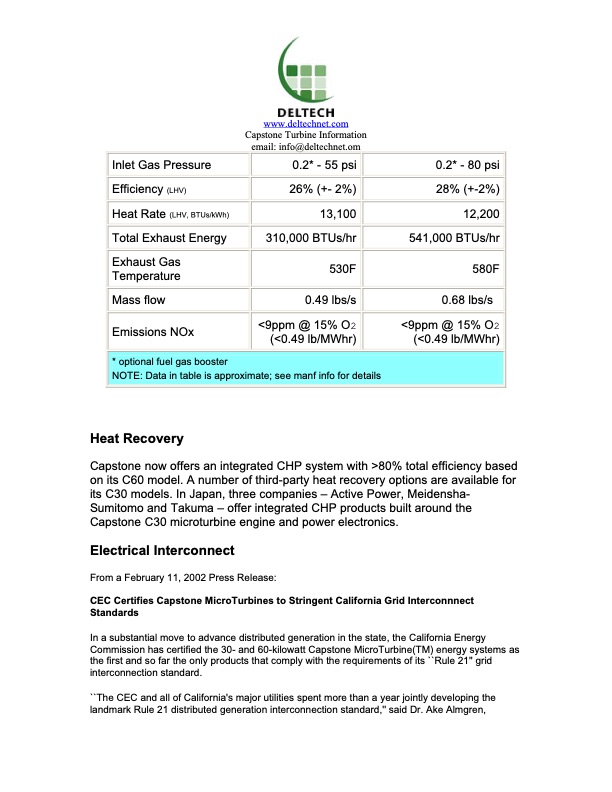

Inlet Gas Pressure Efficiency (LHV) Heat Rate (LHV, BTUs/kWh) Total Exhaust Energy Exhaust Gas Temperature Mass flow Emissions NOx Heat Recovery www.deltechnet.com Capstone Turbine Information email: info@deltechnet.om 0.2* - 55 psi 26% (+- 2%) 13,100 310,000 BTUs/hr 530F 0.49 lbs/s <9ppm @ 15% O2 (<0.49 lb/MWhr) 0.2* - 80 psi 28% (+-2%) 12,200 541,000 BTUs/hr 580F 0.68 lbs/s <9ppm @ 15% O2 (<0.49 lb/MWhr) * optional fuel gas booster NOTE: Data in table is approximate; see manf info for details Capstone now offers an integrated CHP system with >80% total efficiency based on its C60 model. A number of third-party heat recovery options are available for its C30 models. In Japan, three companies – Active Power, Meidensha- Sumitomo and Takuma – offer integrated CHP products built around the Capstone C30 microturbine engine and power electronics. Electrical Interconnect From a February 11, 2002 Press Release: CEC Certifies Capstone MicroTurbines to Stringent California Grid Interconnnect Standards In a substantial move to advance distributed generation in the state, the California Energy Commission has certified the 30- and 60-kilowatt Capstone MicroTurbine(TM) energy systems as the first and so far the only products that comply with the requirements of its ``Rule 21'' grid interconnection standard. ``The CEC and all of California's major utilities spent more than a year jointly developing the landmark Rule 21 distributed generation interconnection standard,'' said Dr. Ake Almgren,PDF Image | CAPSTONE TURBINE SYSTEM Features
