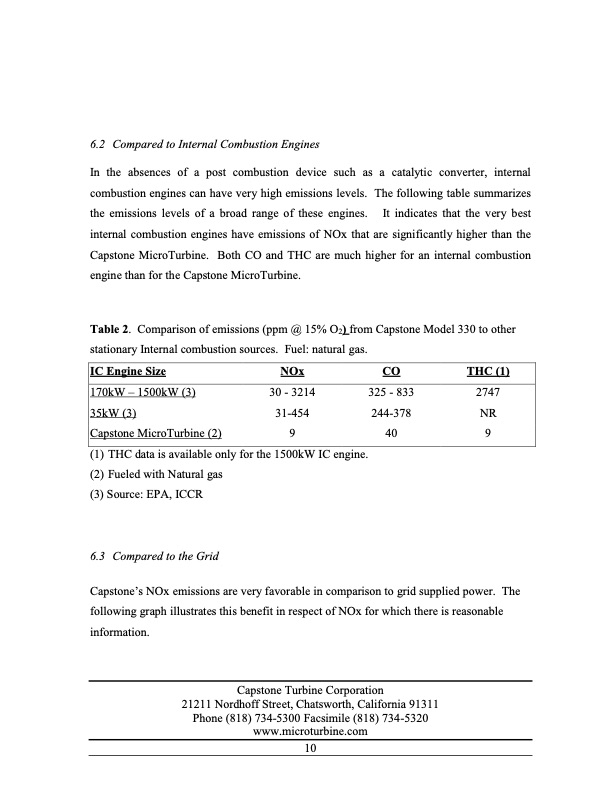

6.2 Compared to Internal Combustion Engines In the absences of a post combustion device such as a catalytic converter, internal combustion engines can have very high emissions levels. The following table summarizes the emissions levels of a broad range of these engines. It indicates that the very best internal combustion engines have emissions of NOx that are significantly higher than the Capstone MicroTurbine. Both CO and THC are much higher for an internal combustion engine than for the Capstone MicroTurbine. Table 2. Comparison of emissions (ppm @ 15% O2) from Capstone Model 330 to other stationary Internal combustion sources. Fuel: natural gas. NOx 170kW – 1500kW (3) 35kW (3) Capstone MicroTurbine (2) (1) THC data is available only for the 1500kW IC engine. (2) Fueled with Natural gas (3) Source: EPA, ICCR 6.3 Compared to the Grid CO 325 - 833 244-378 40 THC (1) 2747 NR 9 IC Engine Size 30 - 3214 31-454 9 Capstone’s NOx emissions are very favorable in comparison to grid supplied power. The following graph illustrates this benefit in respect of NOx for which there is reasonable information. Capstone Turbine Corporation 21211 Nordhoff Street, Chatsworth, California 91311 Phone (818) 734-5300 Facsimile (818) 734-5320 www.microturbine.com 10PDF Image | Capstone Low Emissions MicroTurbine Technology
