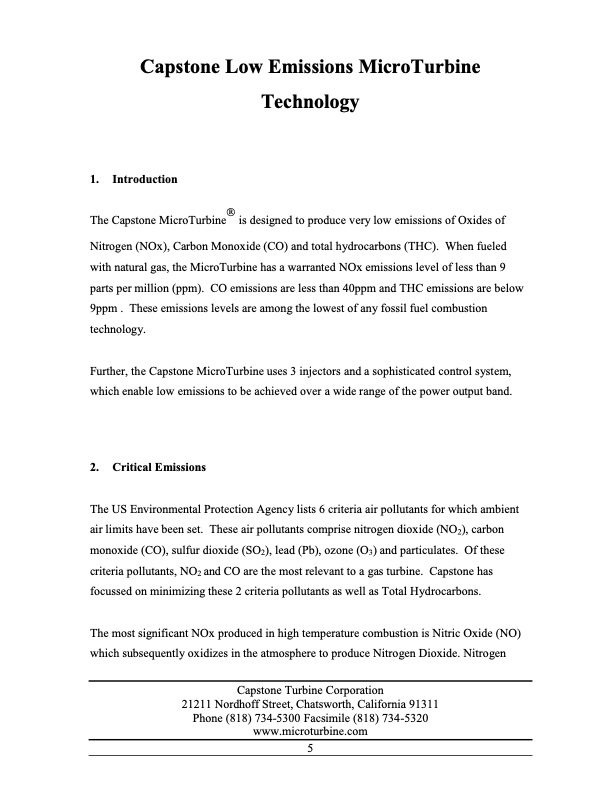

Capstone Low Emissions MicroTurbine Technology 1. Introduction The Capstone MicroTurbineÒ is designed to produce very low emissions of Oxides of Nitrogen (NOx), Carbon Monoxide (CO) and total hydrocarbons (THC). When fueled with natural gas, the MicroTurbine has a warranted NOx emissions level of less than 9 parts per million (ppm). CO emissions are less than 40ppm and THC emissions are below 9ppm . These emissions levels are among the lowest of any fossil fuel combustion technology. Further, the Capstone MicroTurbine uses 3 injectors and a sophisticated control system, which enable low emissions to be achieved over a wide range of the power output band. 2. Critical Emissions The US Environmental Protection Agency lists 6 criteria air pollutants for which ambient air limits have been set. These air pollutants comprise nitrogen dioxide (NO2), carbon monoxide (CO), sulfur dioxide (SO2), lead (Pb), ozone (O3) and particulates. Of these criteria pollutants, NO2 and CO are the most relevant to a gas turbine. Capstone has focussed on minimizing these 2 criteria pollutants as well as Total Hydrocarbons. The most significant NOx produced in high temperature combustion is Nitric Oxide (NO) which subsequently oxidizes in the atmosphere to produce Nitrogen Dioxide. Nitrogen Capstone Turbine Corporation 21211 Nordhoff Street, Chatsworth, California 91311 Phone (818) 734-5300 Facsimile (818) 734-5320 www.microturbine.com 5PDF Image | Capstone Low Emissions MicroTurbine Technology
