PDF Publication Title:
Text from PDF Page: 017

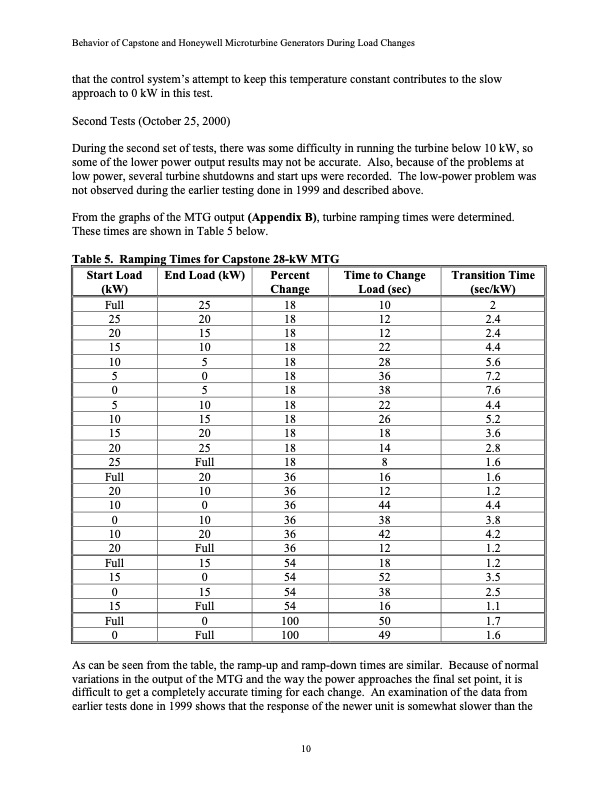

Behavior of Capstone and Honeywell Microturbine Generators During Load Changes that the control system’s attempt to keep this temperature constant contributes to the slow approach to 0 kW in this test. Second Tests (October 25, 2000) During the second set of tests, there was some difficulty in running the turbine below 10 kW, so some of the lower power output results may not be accurate. Also, because of the problems at low power, several turbine shutdowns and start ups were recorded. The low-power problem was not observed during the earlier testing done in 1999 and described above. From the graphs of the MTG output (Appendix B), turbine ramping times were determined. These times are shown in Table 5 below. Table 5. Ramping Times for Capstone 28-kW MTG Start Load (kW) Full 25 20 20 15 15 10 10 5 5 0 0 5 5 10 10 15 15 20 20 25 25 Full Full 20 20 10 10 0 0 10 10 20 20 Full Full 15 15 0 0 15 15 Full 0 End Load (kW) Percent Change 18 18 18 18 18 18 18 18 18 18 18 18 36 36 36 36 36 36 54 54 54 54 Time to Change Load (sec) 10 12 12 22 28 36 38 22 26 18 14 8 16 12 44 38 42 12 18 52 38 16 50 49 Transition Time (sec/kW) 2 2.4 2.4 4.4 5.6 7.2 7.6 4.4 5.2 3.6 2.8 1.6 1.6 1.2 4.4 3.8 4.2 1.2 1.2 3.5 2.5 1.1 1.7 1.6 25 Full 0 100 Full 100 As can be seen from the table, the ramp-up and ramp-down times are similar. Because of normal variations in the output of the MTG and the way the power approaches the final set point, it is difficult to get a completely accurate timing for each change. An examination of the data from earlier tests done in 1999 shows that the response of the newer unit is somewhat slower than the 10PDF Image | Behavior of Capstone and Honeywell Microturbine Generators During Load Changes Consultant Report
PDF Search Title:
Behavior of Capstone and Honeywell Microturbine Generators During Load Changes Consultant ReportOriginal File Name Searched:
2004-05-24_500-04-021.pdfDIY PDF Search: Google It | Yahoo | Bing
