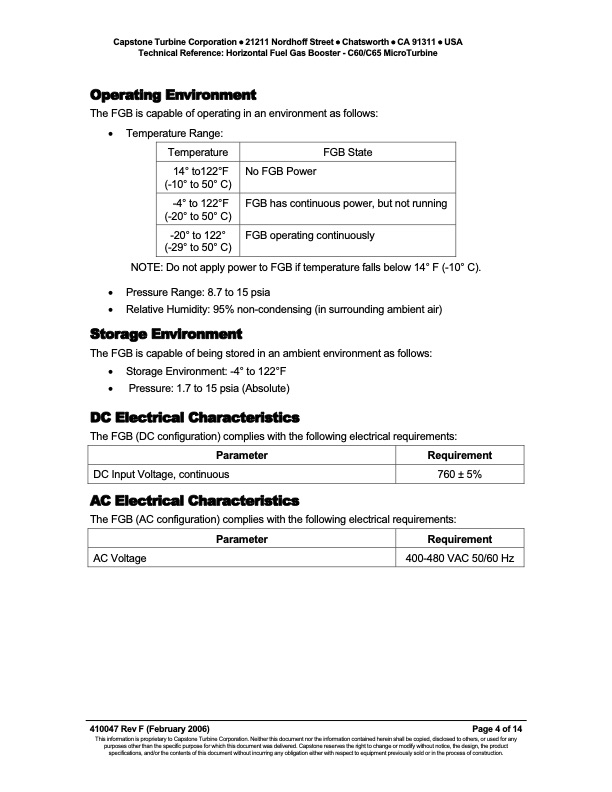

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Horizontal Fuel Gas Booster - C60/C65 MicroTurbine Operating Environment The FGB is capable of operating in an environment as follows: • Temperature Range: Temperature 14° to122°F (-10° to 50° C) -4° to 122°F (-20° to 50° C) • Pressure Range: 8.7 to 15 psia • Relative Humidity: 95% non-condensing (in surrounding ambient air) Storage Environment The FGB is capable of being stored in an ambient environment as follows: • Storage Environment: -4° to 122°F • Pressure: 1.7 to 15 psia (Absolute) DC Electrical Characteristics The FGB (DC configuration) complies with the following electrical requirements: Parameter Requirement DC Input Voltage, continuous 760 ± 5% AC Electrical Characteristics The FGB (AC configuration) complies with the following electrical requirements: FGB State No FGB Power FGB has continuous power, but not running FGB operating continuously NOTE: Do not apply power to FGB if temperature falls below 14° F (-10° C). -20° to 122° (-29° to 50° C) AC Voltage Parameter Requirement 400-480 VAC 50/60 Hz 410047 Rev F (February 2006) Page 4 of 14 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Horizontal Fuel Gas Booster - Model C60/C65 MicroTurbine
