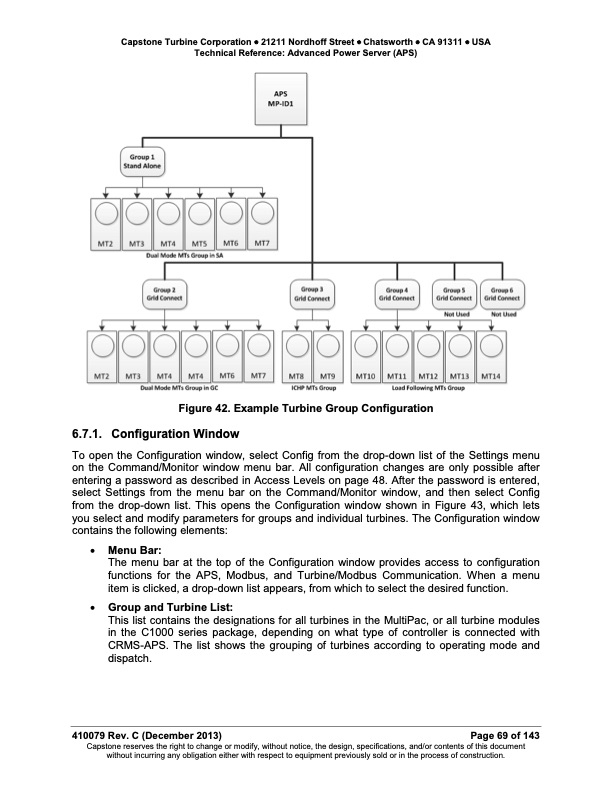

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) Figure 42. Example Turbine Group Configuration 6.7.1. Configuration Window To open the Configuration window, select Config from the drop-down list of the Settings menu on the Command/Monitor window menu bar. All configuration changes are only possible after entering a password as described in Access Levels on page 48. After the password is entered, select Settings from the menu bar on the Command/Monitor window, and then select Config from the drop-down list. This opens the Configuration window shown in Figure 43, which lets you select and modify parameters for groups and individual turbines. The Configuration window contains the following elements: • Menu Bar: The menu bar at the top of the Configuration window provides access to configuration functions for the APS, Modbus, and Turbine/Modbus Communication. When a menu item is clicked, a drop-down list appears, from which to select the desired function. • Group and Turbine List: This list contains the designations for all turbines in the MultiPac, or all turbine modules in the C1000 series package, depending on what type of controller is connected with CRMS-APS. The list shows the grouping of turbines according to operating mode and dispatch. 410079 Rev. C (December 2013) Page 69 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
