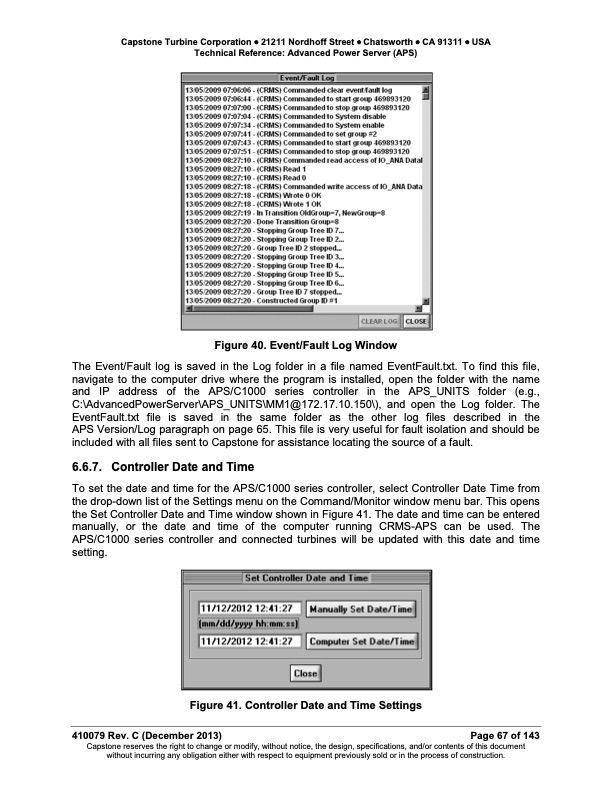

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) Figure 40. Event/Fault Log Window The Event/Fault log is saved in the Log folder in a file named EventFault.txt. To find this file, navigate to the computer drive where the program is installed, open the folder with the name and IP address of the APS/C1000 series controller in the APS_UNITS folder (e.g., C:\AdvancedPowerServer\APS_UNITS\MM1@172.17.10.150\), and open the Log folder. The EventFault.txt file is saved in the same folder as the other log files described in the APS Version/Log paragraph on page 65. This file is very useful for fault isolation and should be included with all files sent to Capstone for assistance locating the source of a fault. 6.6.7. Controller Date and Time To set the date and time for the APS/C1000 series controller, select Controller Date Time from the drop-down list of the Settings menu on the Command/Monitor window menu bar. This opens the Set Controller Date and Time window shown in Figure 41. The date and time can be entered manually, or the date and time of the computer running CRMS-APS can be used. The APS/C1000 series controller and connected turbines will be updated with this date and time setting. Figure 41. Controller Date and Time Settings 410079 Rev. C (December 2013) Page 67 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
