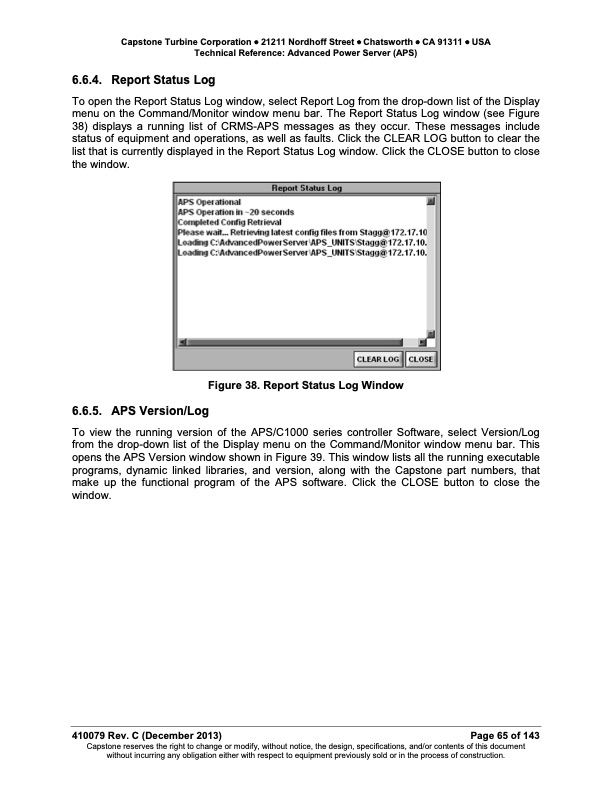

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 6.6.4. Report Status Log To open the Report Status Log window, select Report Log from the drop-down list of the Display menu on the Command/Monitor window menu bar. The Report Status Log window (see Figure 38) displays a running list of CRMS-APS messages as they occur. These messages include status of equipment and operations, as well as faults. Click the CLEAR LOG button to clear the list that is currently displayed in the Report Status Log window. Click the CLOSE button to close the window. Figure 38. Report Status Log Window 6.6.5. APS Version/Log To view the running version of the APS/C1000 series controller Software, select Version/Log from the drop-down list of the Display menu on the Command/Monitor window menu bar. This opens the APS Version window shown in Figure 39. This window lists all the running executable programs, dynamic linked libraries, and version, along with the Capstone part numbers, that make up the functional program of the APS software. Click the CLOSE button to close the window. 410079 Rev. C (December 2013) Page 65 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
