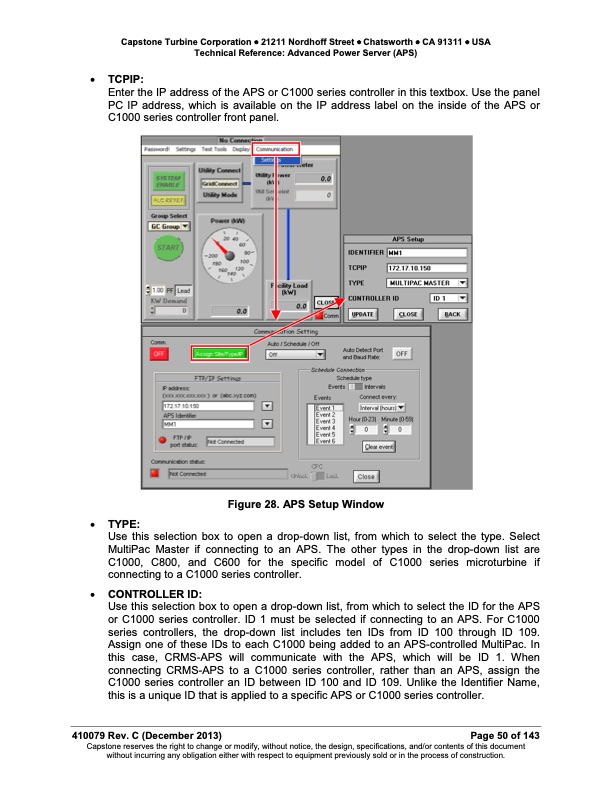

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) • TCPIP: Enter the IP address of the APS or C1000 series controller in this textbox. Use the panel PC IP address, which is available on the IP address label on the inside of the APS or C1000 series controller front panel. Figure 28. APS Setup Window • TYPE: Use this selection box to open a drop-down list, from which to select the type. Select MultiPac Master if connecting to an APS. The other types in the drop-down list are C1000, C800, and C600 for the specific model of C1000 series microturbine if connecting to a C1000 series controller. • CONTROLLER ID: Use this selection box to open a drop-down list, from which to select the ID for the APS or C1000 series controller. ID 1 must be selected if connecting to an APS. For C1000 series controllers, the drop-down list includes ten IDs from ID 100 through ID 109. Assign one of these IDs to each C1000 being added to an APS-controlled MultiPac. In this case, CRMS-APS will communicate with the APS, which will be ID 1. When connecting CRMS-APS to a C1000 series controller, rather than an APS, assign the C1000 series controller an ID between ID 100 and ID 109. Unlike the Identifier Name, this is a unique ID that is applied to a specific APS or C1000 series controller. 410079 Rev. C (December 2013) Page 50 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
PDF Search Title:
Technical Reference Advanced Power Server (APS)Original File Name Searched:
410079C_TR_APS-145.pdfDIY PDF Search: Google It | Yahoo | Bing
