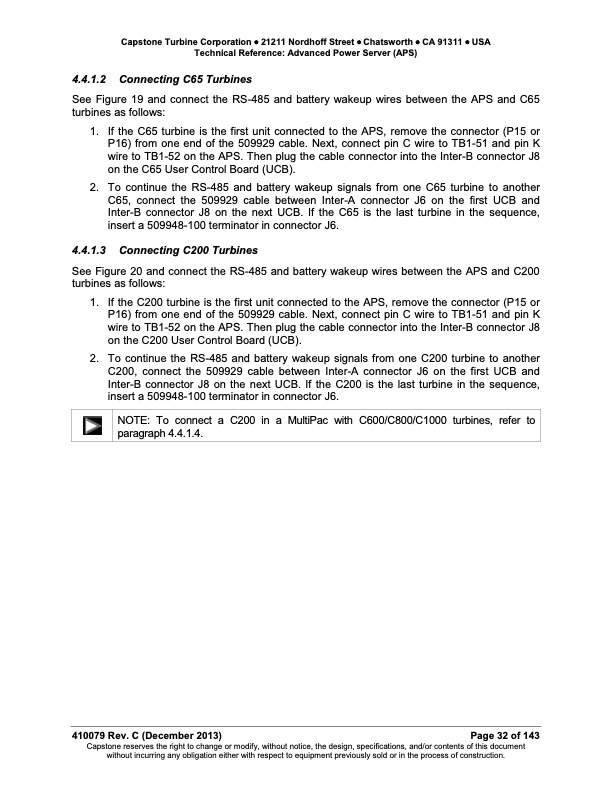

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 4.4.1.2 Connecting C65 Turbines See Figure 19 and connect the RS-485 and battery wakeup wires between the APS and C65 turbines as follows: 1. 2. 4.4.1.3 If the C65 turbine is the first unit connected to the APS, remove the connector (P15 or P16) from one end of the 509929 cable. Next, connect pin C wire to TB1-51 and pin K wire to TB1-52 on the APS. Then plug the cable connector into the Inter-B connector J8 on the C65 User Control Board (UCB). To continue the RS-485 and battery wakeup signals from one C65 turbine to another C65, connect the 509929 cable between Inter-A connector J6 on the first UCB and Inter-B connector J8 on the next UCB. If the C65 is the last turbine in the sequence, insert a 509948-100 terminator in connector J6. Connecting C200 Turbines See Figure 20 and connect the RS-485 and battery wakeup wires between the APS and C200 turbines as follows: 1. If the C200 turbine is the first unit connected to the APS, remove the connector (P15 or P16) from one end of the 509929 cable. Next, connect pin C wire to TB1-51 and pin K wire to TB1-52 on the APS. Then plug the cable connector into the Inter-B connector J8 on the C200 User Control Board (UCB). 2. To continue the RS-485 and battery wakeup signals from one C200 turbine to another C200, connect the 509929 cable between Inter-A connector J6 on the first UCB and Inter-B connector J8 on the next UCB. If the C200 is the last turbine in the sequence, insert a 509948-100 terminator in connector J6. NOTE: To connect a C200 in a MultiPac with C600/C800/C1000 turbines, refer to paragraph 4.4.1.4. 410079 Rev. C (December 2013) Page 32 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
