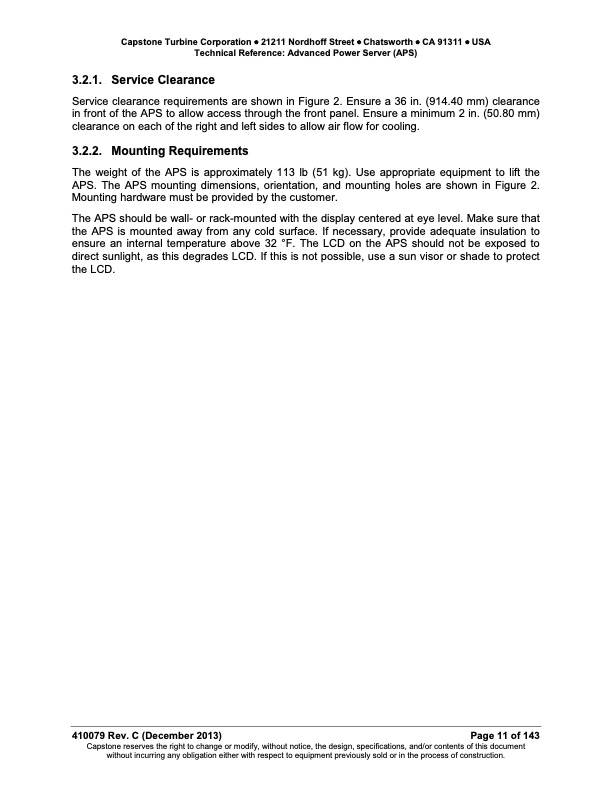

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 3.2.1. Service Clearance Service clearance requirements are shown in Figure 2. Ensure a 36 in. (914.40 mm) clearance in front of the APS to allow access through the front panel. Ensure a minimum 2 in. (50.80 mm) clearance on each of the right and left sides to allow air flow for cooling. 3.2.2. Mounting Requirements The weight of the APS is approximately 113 lb (51 kg). Use appropriate equipment to lift the APS. The APS mounting dimensions, orientation, and mounting holes are shown in Figure 2. Mounting hardware must be provided by the customer. The APS should be wall- or rack-mounted with the display centered at eye level. Make sure that the APS is mounted away from any cold surface. If necessary, provide adequate insulation to ensure an internal temperature above 32 °F. The LCD on the APS should not be exposed to direct sunlight, as this degrades LCD. If this is not possible, use a sun visor or shade to protect the LCD. 410079 Rev. C (December 2013) Page 11 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Advanced Power Server (APS)
