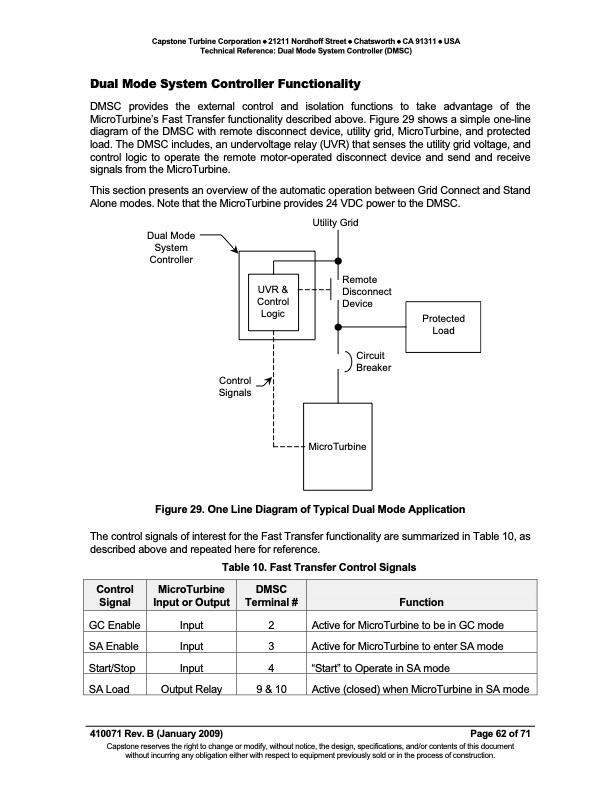

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) Dual Mode System Controller Functionality DMSC provides the external control and isolation functions to take advantage of the MicroTurbine’s Fast Transfer functionality described above. Figure 29 shows a simple one-line diagram of the DMSC with remote disconnect device, utility grid, MicroTurbine, and protected load. The DMSC includes, an undervoltage relay (UVR) that senses the utility grid voltage, and control logic to operate the remote motor-operated disconnect device and send and receive signals from the MicroTurbine. This section presents an overview of the automatic operation between Grid Connect and Stand Alone modes. Note that the MicroTurbine provides 24 VDC power to the DMSC. Dual Mode System Controller Utility Grid Remote Disconnect Device Circuit Breaker 410071 Rev. B (January 2009) Control Signals UVR & Control Logic Figure 29. One Line Diagram of Typical Dual Mode Application The control signals of interest for the Fast Transfer functionality are summarized in Table 10, as described above and repeated here for reference. Table 10. Fast Transfer Control Signals GC Enable SA Enable Start/Stop SA Load Input Input Input Output Relay 2 3 4 9 & 10 Active for MicroTurbine to be in GC mode Active for MicroTurbine to enter SA mode “Start” to Operate in SA mode Active (closed) when MicroTurbine in SA mode Page 62 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Protected Load Control MicroTurbine Signal MicroTurbine Input or Output DMSC Terminal # FunctionPDF Image | TECH REF DMSC RB
