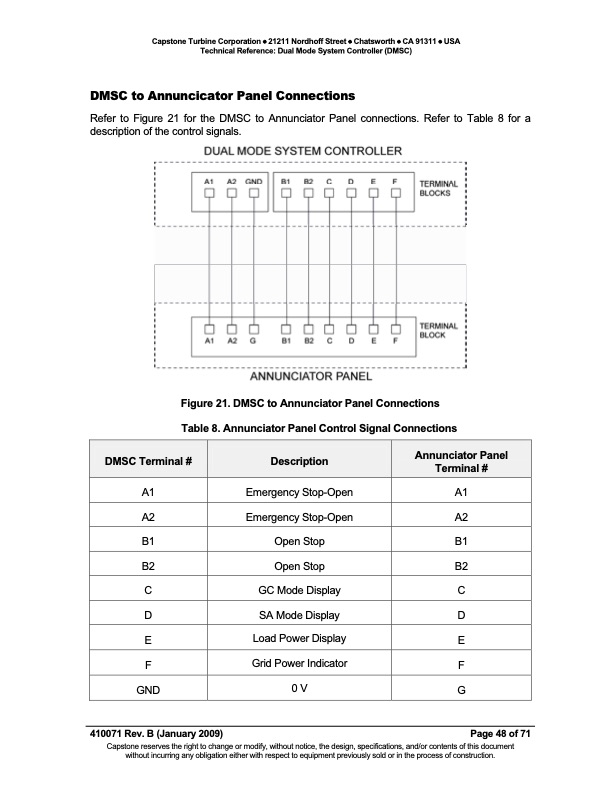

Capstone Turbine Corporation  21211 Nordhoff Street  Chatsworth  CA 91311  USA Technical Reference: Dual Mode System Controller (DMSC) DMSC to Annuncicator Panel Connections Refer to Figure 21 for the DMSC to Annunciator Panel connections. Refer to Table 8 for a description of the control signals. Figure 21. DMSC to Annunciator Panel Connections Table 8. Annunciator Panel Control Signal Connections Emergency Stop-Open A1 Emergency Stop-Open A2 Open Stop B1 Open Stop B2 GC Mode Display C SA Mode Display D Load Power Display E DMSC Terminal # Description Annunciator Panel Terminal # A1 A2 B1 B2 C D E F 410071 Rev. B (January 2009) Grid Power Indicator F GND 0V G Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 48 of 71
