Text from PDF Page: 040

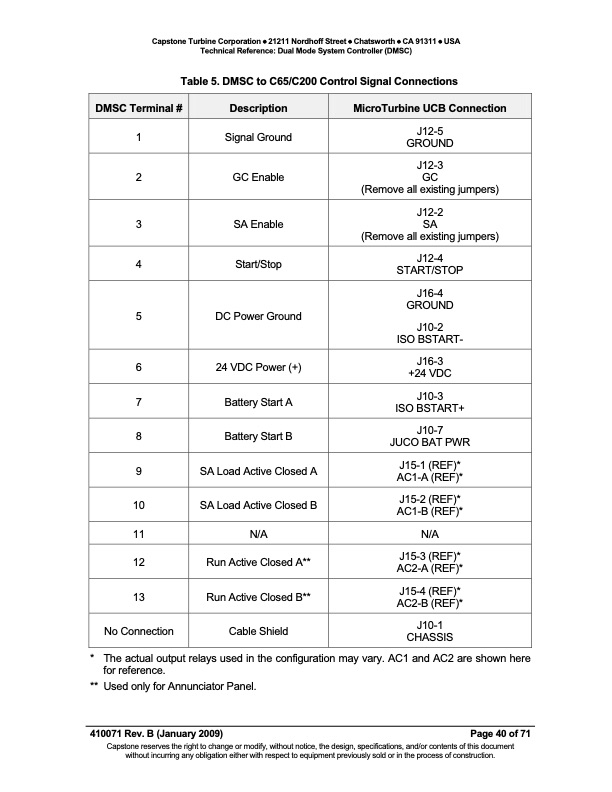

Capstone Turbine Corporation  21211 Nordhoff Street  Chatsworth  CA 91311  USA Technical Reference: Dual Mode System Controller (DMSC) Table 5. DMSC to C65/C200 Control Signal Connections DMSC Terminal # Description MicroTurbine UCB Connection 1 4 6 7 8 9 10 11 12 13 No Connection Signal Ground Start/Stop 24 VDC Power (+) Battery Start A Battery Start B SA Load Active Closed A SA Load Active Closed B J12-5 GROUND J12-4 START/STOP J16-3 +24 VDC J10-3 ISO BSTART+ J10-7 JUCO BAT PWR J15-1 (REF)* AC1-A (REF)* J15-2 (REF)* AC1-B (REF)* 2 GC Enable J12-3 GC (Remove all existing jumpers) 3 SA Enable J12-2 SA (Remove all existing jumpers) 5 DC Power Ground J16-4 GROUND J10-2 ISO BSTART- N/A N/A Run Active Closed A** Run Active Closed B** Cable Shield J15-3 (REF)* AC2-A (REF)* J15-4 (REF)* AC2-B (REF)* J10-1 CHASSIS * The actual output relays used in the configuration may vary. AC1 and AC2 are shown here for reference. ** Used only for Annunciator Panel. 410071 Rev. B (January 2009) Page 40 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
