Text from PDF Page: 038

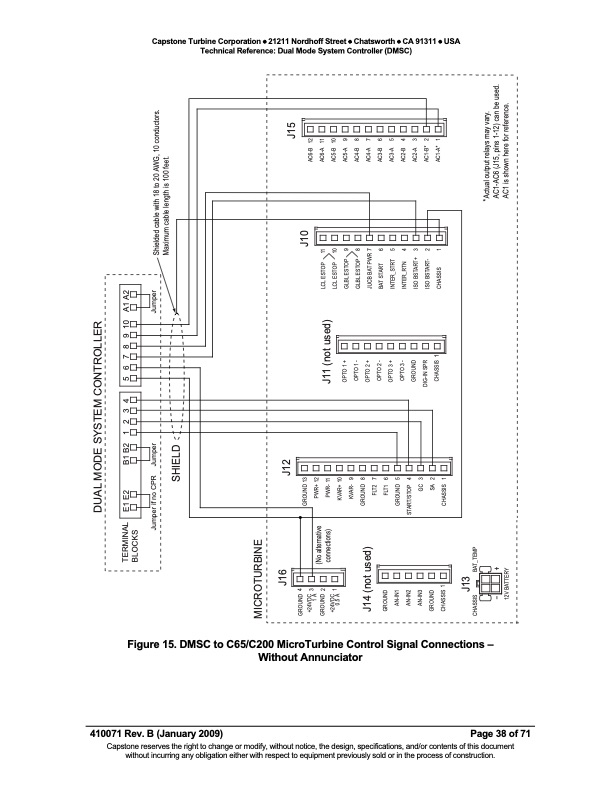

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) Figure 15. DMSC to C65/C200 MicroTurbine Control Signal Connections – Without Annunciator 410071 Rev. B (January 2009) Page 38 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. MICROTURBINE J16 J12 J15 GROUND 4 3 2 1 GROUND 13 PWR+ 12 PWR- 11 KVAR+ 10 KVAR- 9 GROUND 8 FLT2 7 FLT1 6 GROUND 5 START/STOP 4 GC 3 SA 2 CHASSIS 1 J10 +24VDC 1 A (No alternative connections) AC6-B 12 AC6-A 11 AC5-B 10 AC5-A 9 AC4-B 8 AC4-A 7 AC3-B 6 AC3-A 5 AC2-B 4 AC2-A 3 AC1-B* 2 AC1-A* 1 GROUND 11 10 9 8 7 6 5 4 3 2 1 +24VDC 0.5 A J11 (not used) LCL ESTOP LCL ESTOP GLBL ESTOP GLBL ESTOP JUCB BAT PWR BAT START INTER_STRT INTER_RTN ISO BSTART+ ISO BSTART- CHASSIS J14 (not used) OPTO 1 + OPTO 1 - OPTO 2 + OPTO 2 - OPTO 3 + OPTO 3 - GROUND DIG-IN SPR CHASSIS GROUND AN-IN1 AN-IN2 AN-IN3 GROUND CHASSIS 1 CHASSIS BAT_TEMP 1 J13 12V BATTERY *Actual output relays may vary. AC1-AC6 (J15, pins 1-12) can be used. AC1 is shown here for reference. DUAL MODE SYSTEM CONTROLLER TERMINAL E1 E2 B1 B2 BLOCKS 1 2 3 4 5 6 7 8 9 10 A1 A2 Jumper Jumper if no CPR Jumper Shielded cable with 18 to 20 AWG, 10 conductors. Maximum cable length is 100 feet. SHIELDPDF Image | TECH REF DMSC RB
