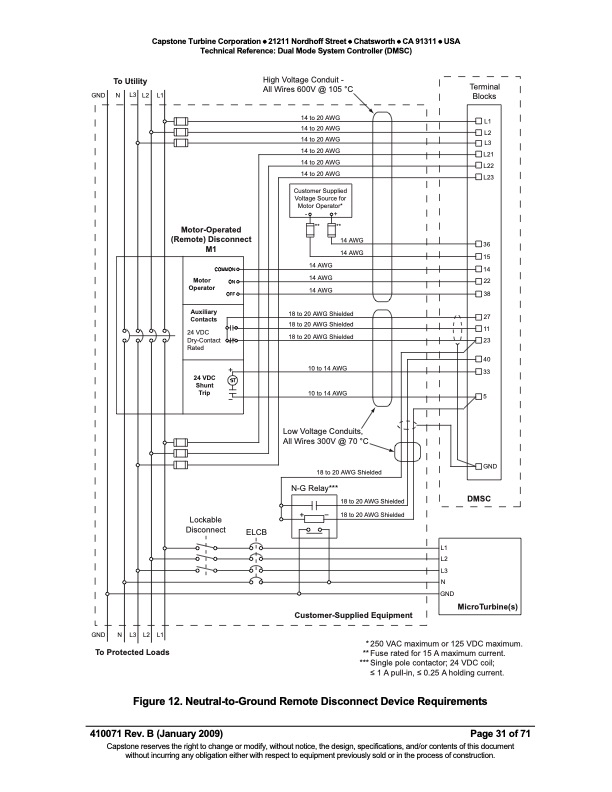

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) High Voltage Conduit - All Wires 600V @ 105 °C To Utility GND N L3 L2 L1 Terminal Blocks Motor-Operated (Remote) Disconnect M1 Motor Operator Auxiliary Contacts 24 VDC Dry-Contact Rated 14 to 20 AWG L1 L2 L3 L21 L22 L23 36 15 14 22 27 11 23 40 33 5 GND 14 to 20 AWG 14 to 20 AWG 14 to 20 AWG 14 to 20 AWG 14 to 20 AWG Customer Supplied Voltage Source for Motor Operator* -+ ** ** 14 AWG 14 AWG 14 AWG 14 AWG 14 AWG 18 to 20 AWG Shielded 18 to 20 AWG Shielded 18 to 20 AWG Shielded 24 VDC Shunt Trip 10 to 14 AWG 10 to 14 AWG Lockable Disconnect ELCB Low Voltage Conduits, All Wires 300V @ 70 °C 18 to 20 AWG Shielded N-G Relay*** 18 to 20 AWG Shielded 18 to 20 AWG Shielded DMSC L1 L2 L3 N GND GND N L3 L2 L1 To Protected Loads * 250 VAC maximum or 125 VDC maximum. ** Fuse rated for 15 A maximum current. *** Single pole contactor; 24 VDC coil; ≤ 1 A pull-in, ≤ 0.25 A holding current. Customer-Supplied Equipment Figure 12. Neutral-to-Ground Remote Disconnect Device Requirements 410071 Rev. B (January 2009) Page 31 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. MicroTurbine(s) 38PDF Image | TECH REF DMSC RB
