Text from PDF Page: 023

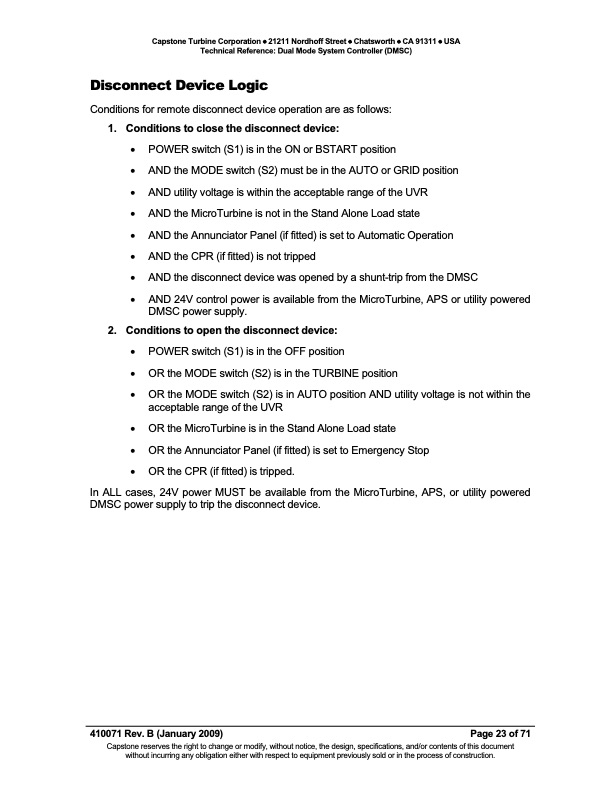

Capstone Turbine Corporation  21211 Nordhoff Street  Chatsworth  CA 91311  USA Technical Reference: Dual Mode System Controller (DMSC) Disconnect Device Logic Conditions for remote disconnect device operation are as follows: 1. Conditions to close the disconnect device:  POWER switch (S1) is in the ON or BSTART position  AND the MODE switch (S2) must be in the AUTO or GRID position  AND utility voltage is within the acceptable range of the UVR  AND the MicroTurbine is not in the Stand Alone Load state  AND the Annunciator Panel (if fitted) is set to Automatic Operation  AND the CPR (if fitted) is not tripped  AND the disconnect device was opened by a shunt-trip from the DMSC  AND 24V control power is available from the MicroTurbine, APS or utility powered DMSC power supply. 2. Conditions to open the disconnect device:  POWER switch (S1) is in the OFF position  OR the MODE switch (S2) is in the TURBINE position  OR the MODE switch (S2) is in AUTO position AND utility voltage is not within the acceptable range of the UVR  OR the MicroTurbine is in the Stand Alone Load state  OR the Annunciator Panel (if fitted) is set to Emergency Stop  OR the CPR (if fitted) is tripped. In ALL cases, 24V power MUST be available from the MicroTurbine, APS, or utility powered DMSC power supply to trip the disconnect device. 410071 Rev. B (January 2009) Page 23 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
