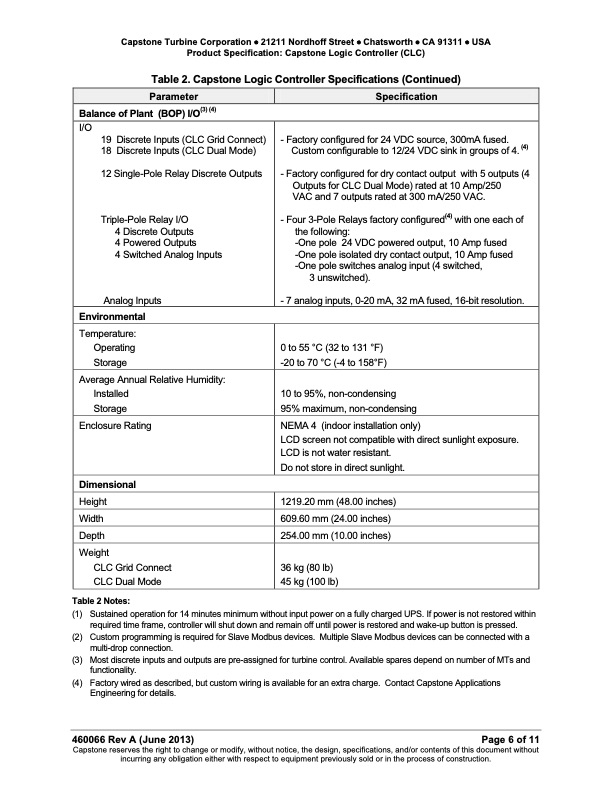

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Product Specification: Capstone Logic Controller (CLC) Table 2. Capstone Logic Controller Specifications (Continued) Balance of Plant (BOP) I/O(3) (4) Parameter Specification I/O 19 Discrete Inputs (CLC Grid Connect) 18 Discrete Inputs (CLC Dual Mode) 12 Single-Pole Relay Discrete Outputs Triple-Pole Relay I/O 4 Discrete Outputs 4 Powered Outputs 4 Switched Analog Inputs Analog Inputs - Factory configured for 24 VDC source, 300mA fused. Custom configurable to 12/24 VDC sink in groups of 4. (4) - Factory configured for dry contact output with 5 outputs (4 Outputs for CLC Dual Mode) rated at 10 Amp/250 VAC and 7 outputs rated at 300 mA/250 VAC. - Four 3-Pole Relays factory configured(4) with one each of the following: -One pole 24 VDC powered output, 10 Amp fused -One pole isolated dry contact output, 10 Amp fused -One pole switches analog input (4 switched, 3 unswitched). - 7 analog inputs, 0-20 mA, 32 mA fused, 16-bit resolution. Environmental Temperature: Operating Storage 0to55°C(32to131°F) -20 to 70 °C (-4 to 158°F) Average Annual Relative Humidity: Installed Storage 10 to 95%, non-condensing 95% maximum, non-condensing Enclosure Rating NEMA 4 (indoor installation only) LCD screen not compatible with direct sunlight exposure. LCD is not water resistant. Do not store in direct sunlight. Dimensional Height Width Depth Table 2 Notes: 1219.20 mm (48.00 inches) 609.60 mm (24.00 inches) 254.00 mm (10.00 inches) Weight CLC Grid Connect CLC Dual Mode 36 kg (80 lb) 45 kg (100 lb) (1) Sustained operation for 14 minutes minimum without input power on a fully charged UPS. If power is not restored within required time frame, controller will shut down and remain off until power is restored and wake-up button is pressed. (2) Custom programming is required for Slave Modbus devices. Multiple Slave Modbus devices can be connected with a multi-drop connection. (3) Most discrete inputs and outputs are pre-assigned for turbine control. Available spares depend on number of MTs and functionality. (4) Factory wired as described, but custom wiring is available for an extra charge. Contact Capstone Applications Engineering for details. 460066 Rev A (June 2013) Page 6 of 11 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Capstone Logic Controller (CLC)
