Text from PDF Page: 048

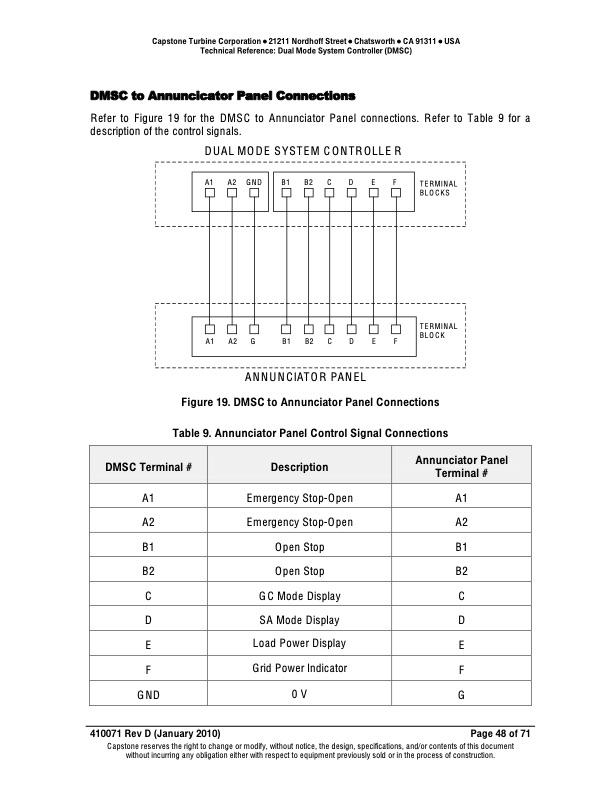

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Dual Mode System Controller (DMSC) DMSC to Annuncicator Panel Connections Refer to Figure 19 for the DMSC to Annunciator Panel connections. Refer to Table 9 for a description of the control signals. DUAL MODE SYSTEM CONTROLLE R A1 A2 GND B1 B2 C D E F A1 A2 G B1 B2 C D E F Figure 19. DMSC to Annunciator Panel Connections Table 9. Annunciator Panel Control Signal Connections TERMINAL BLOCKS ANNUNCIATOR PANEL TERMINAL BLOCK DMSC Terminal # A1 A2 B1 B2 C D E F Description Emergency Stop-Open A1 Emergency Stop-Open A2 Open Stop B1 Open Stop B2 GC Mode Display C SA Mode Display D Load Power Display E Grid Power Indicator F GND 0V G 410071 Rev D (January 2010) Page 48 of 71 Annunciator Panel Terminal # Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
