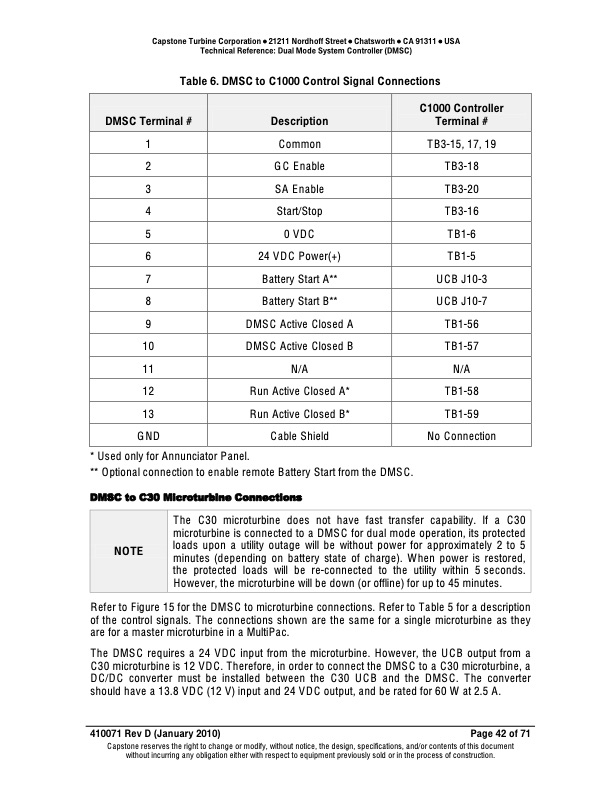

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Dual Mode System Controller (DMSC) Table 6. DMSC to C1000 Control Signal Connections C1000 Controller Terminal # DMSC Terminal # Description 1 2 3 4 5 6 7 8 9 10 11 12 13 GND Common GC Enable SA Enable Start/Stop 0 VDC 24 VDC Power(+) Battery Start A** Battery Start B** DMSC Active Closed A DMSC Active Closed B N/A Run Active Closed A* Run Active Closed B* Cable Shield TB3-15, 17, 19 TB3-18 TB3-20 TB3-16 TB1-6 TB1-5 UCB J10-3 UCB J10-7 TB1-56 TB1-57 N/A TB1-58 TB1-59 No Connection * Used only for Annunciator Panel. ** Optional connection to enable remote Battery Start from the DMSC. DMSC to C30 Microturbine Connections The C30 microturbine does not have fast transfer capability. If a C30 microturbine is connected to a DMSC for dual mode operation, its protected loads upon a utility outage will be without power for approximately 2 to 5 minutes (depending on battery state of charge). When power is restored, the protected loads will be re-connected to the utility within 5 seconds. However, the microturbine will be down (or offline) for up to 45 minutes. NOTE Refer to Figure 15 for the DMSC to microturbine connections. Refer to Table 5 for a description of the control signals. The connections shown are the same for a single microturbine as they are for a master microturbine in a MultiPac. The DMSC requires a 24 VDC input from the microturbine. However, the UCB output from a C30 microturbine is 12 VDC. Therefore, in order to connect the DMSC to a C30 microturbine, a DC/DC converter must be installed between the C30 UCB and the DMSC. The converter should have a 13.8 VDC (12 V) input and 24 VDC output, and be rated for 60 W at 2.5 A. 410071 Rev D (January 2010) Page 42 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Dual Mode System Controller DMSC
