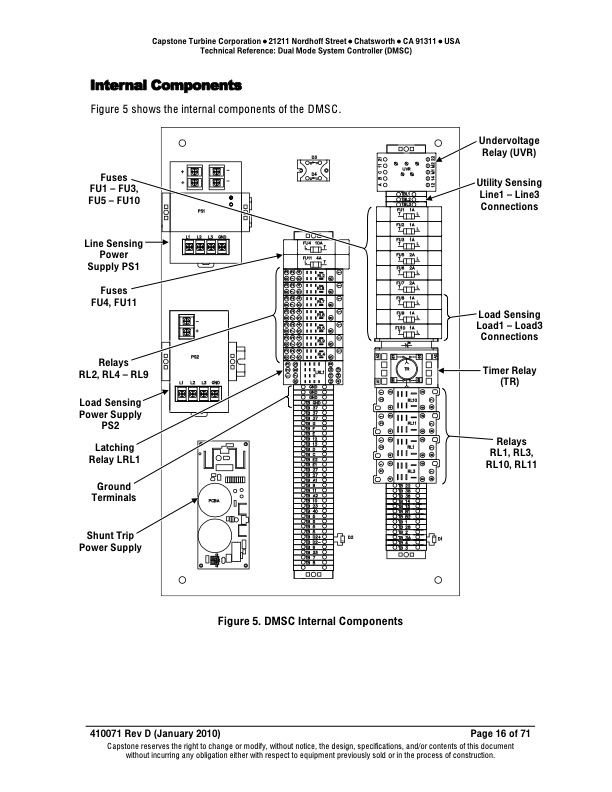

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Dual Mode System Controller (DMSC) Internal Components Figure 5 shows the internal components of the DMSC. Fuses FU1 – FU3, FU5 – FU10 Line Sensing Power Supply PS1 Fuses FU4, FU11 Relays RL2, RL4 – RL9 Load Sensing Power Supply PS2 Latching Relay LRL1 Ground Terminals Shunt Trip Power Supply Undervoltage Relay (UVR) Utility Sensing Line1 – Line3 Connections Load Sensing Load1 – Load3 Connections Timer Relay (TR) Relays RL1, RL3, RL10, RL11 410071 Rev D (January 2010) Page 16 of 71 Figure 5. DMSC Internal Components Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Dual Mode System Controller DMSC
