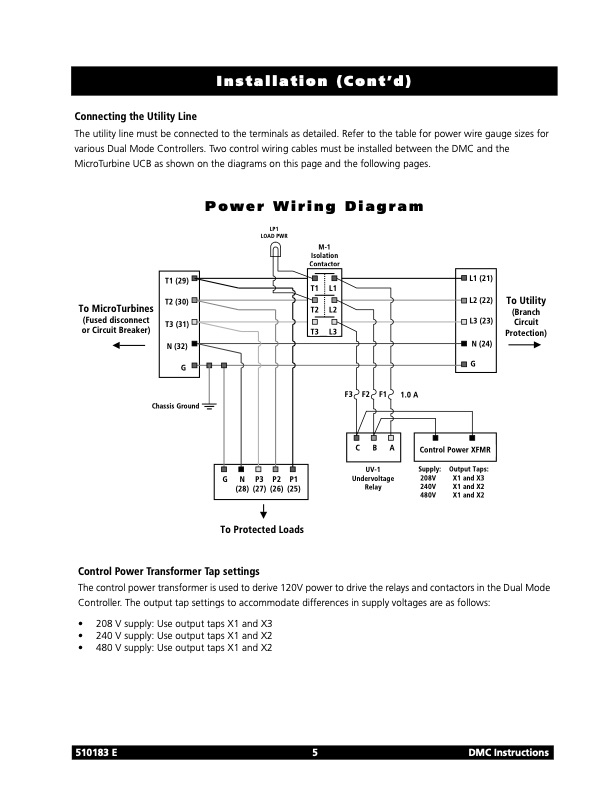

Installation (Cont’d) Connecting the Utility Line The utility line must be connected to the terminals as detailed. Refer to the table for power wire gauge sizes for various Dual Mode Controllers. Two control wiring cables must be installed between the DMC and the MicroTurbine UCB as shown on the diagrams on this page and the following pages. Power Wiring Diagram LP1 LOAD PWR M-1 Isolation Contactor T1 (29) T2 (30) T3 (31) N (32) G T1 L1 T2 L2 T3 L3 L1 (21) L2 (22) L3 (23) N (24) G G N P3 P2 P1 (28) (27) (26) (25) To MicroTurbines (Fused disconnect or Circuit Breaker) Chassis Ground To Utility (Branch Circuit Protection) F3 F2 F1 1.0A UV-1 Supply: Undervoltage 208V Relay 240V 480V Output Taps: X1 and X3 X1 and X2 X1 and X2 To Protected Loads CBA Control Power XFMR Control Power Transformer Tap settings The control power transformer is used to derive 120V power to drive the relays and contactors in the Dual Mode Controller. The output tap settings to accommodate differences in supply voltages are as follows: • 208 V supply: Use output taps X1 and X3 • 240 V supply: Use output taps X1 and X2 • 480 V supply: Use output taps X1 and X2 510183 E 5 DMC InstructionsPDF Image | DUAL MODE CONTROLLER INSTRUCTIONS
