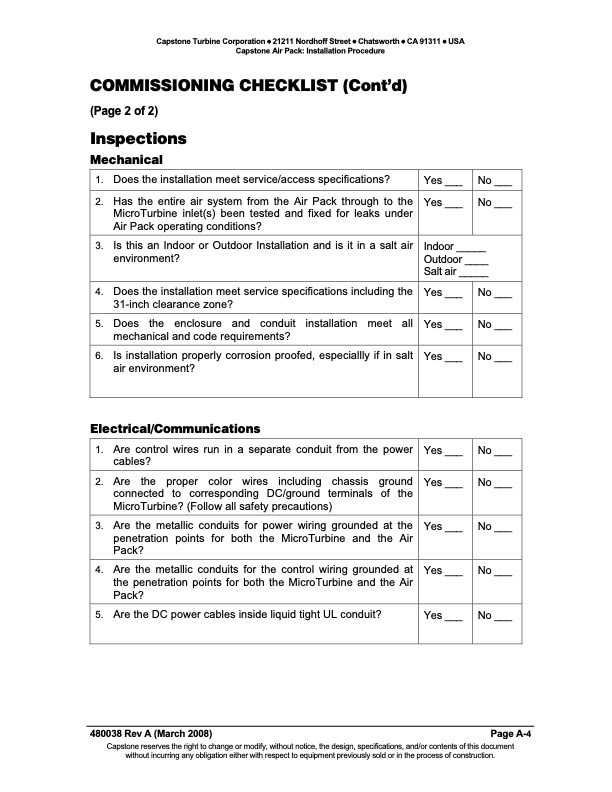

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure COMMISSIONING CHECKLIST (Cont’d) (Page 2 of 2) Inspections Mechanical 1. Does the installation meet service/access specifications? 4. Does the installation meet service specifications including the 31-inch clearance zone? 5. Does the enclosure and conduit installation meet all mechanical and code requirements? Electrical/Communications 1. Are control wires run in a separate conduit from the power cables? Yes ___ Yes ___ Yes ___ Yes ___ No ___ No ___ No ___ No ___ 2. Has the entire air system from the Air Pack through to the MicroTurbine inlet(s) been tested and fixed for leaks under Air Pack operating conditions? Yes ___ No ___ 3. Is this an Indoor or Outdoor Installation and is it in a salt air environment? Indoor _____ Outdoor ____ Salt air _____ 6. Is installation properly corrosion proofed, especiallly if in salt air environment? Yes ___ No ___ 2. Are the proper color wires including chassis ground connected to corresponding DC/ground terminals of the MicroTurbine? (Follow all safety precautions) Yes ___ No ___ 3. Are the metallic conduits for power wiring grounded at the penetration points for both the MicroTurbine and the Air Pack? Yes ___ No ___ 4. Are the metallic conduits for the control wiring grounded at the penetration points for both the MicroTurbine and the Air Pack? Yes ___ No ___ 5. Are the DC power cables inside liquid tight UL conduit? Yes ___ No ___ 480038 Rev A (March 2008) Page A-4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
