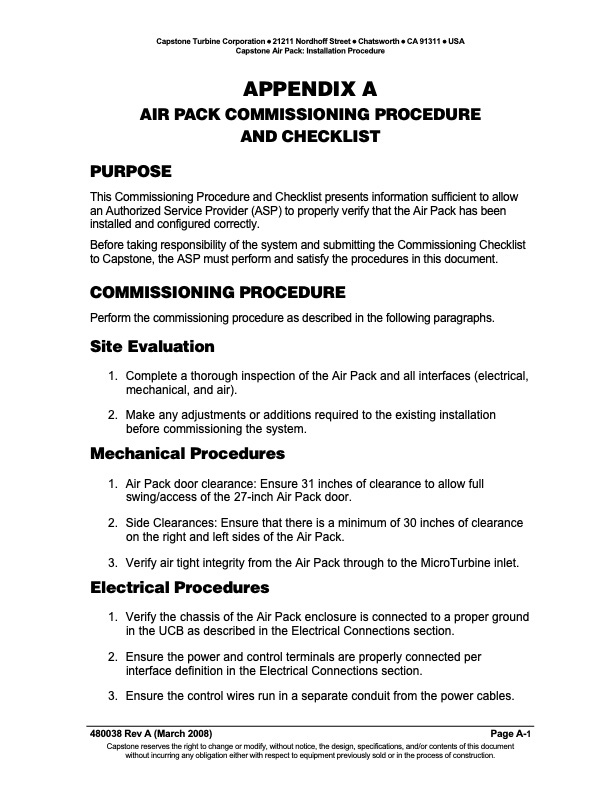

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure APPENDIX A AIR PACK COMMISSIONING PROCEDURE AND CHECKLIST PURPOSE This Commissioning Procedure and Checklist presents information sufficient to allow an Authorized Service Provider (ASP) to properly verify that the Air Pack has been installed and configured correctly. Before taking responsibility of the system and submitting the Commissioning Checklist to Capstone, the ASP must perform and satisfy the procedures in this document. COMMISSIONING PROCEDURE Perform the commissioning procedure as described in the following paragraphs. Site Evaluation 1. Complete a thorough inspection of the Air Pack and all interfaces (electrical, mechanical, and air). 2. Makeanyadjustmentsoradditionsrequiredtotheexistinginstallation before commissioning the system. Mechanical Procedures 1. Air Pack door clearance: Ensure 31 inches of clearance to allow full swing/access of the 27-inch Air Pack door. 2. SideClearances:Ensurethatthereisaminimumof30inchesofclearance on the right and left sides of the Air Pack. 3. VerifyairtightintegrityfromtheAirPackthroughtotheMicroTurbineinlet. Electrical Procedures 1. VerifythechassisoftheAirPackenclosureisconnectedtoaproperground in the UCB as described in the Electrical Connections section. 2. Ensurethepowerandcontrolterminalsareproperlyconnectedper interface definition in the Electrical Connections section. 3. Ensurethecontrolwiresruninaseparateconduitfromthepowercables. 480038 Rev A (March 2008) Page A-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
