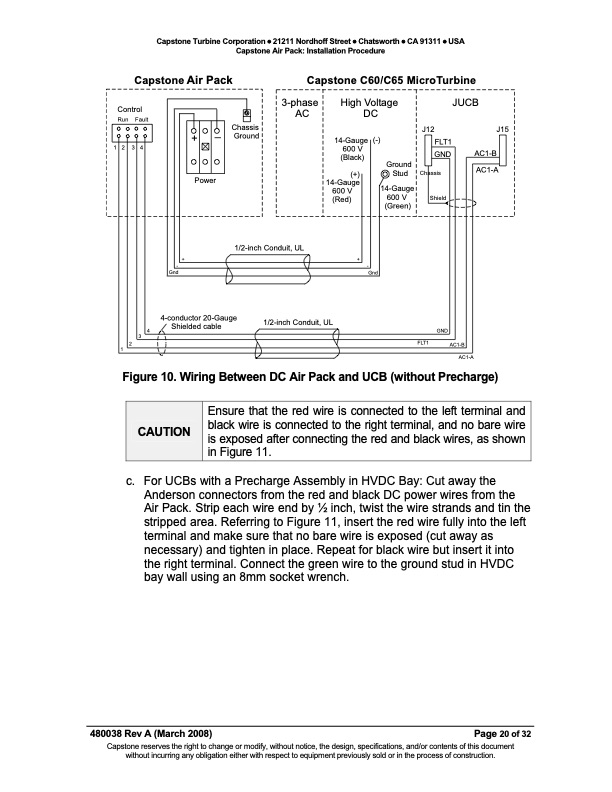

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure Capstone Air Pack Capstone C60/C65 MicroTurbine 3-phase AC High Voltage DC 14-Gauge (-) 600 V (Black) Ground (+) Stud JUCB J12 J15 FLT1 Control Run Fault 1 Chassis Ground 2 3 4 + _ GND Chassis Shield AC1-B AC1-A Power 14-Gauge 600 V (Red) 14-Gauge 600 V (Green) Gnd - - Gnd 4-conductor 20-Gauge 1/2-inch Conduit, UL 4 Shielded cable GND 1 2 3 FLT1 AC1-B 1/2-inch Conduit, UL ++ Figure 10. Wiring Between DC Air Pack and UCB (without Precharge) c. For UCBs with a Precharge Assembly in HVDC Bay: Cut away the Anderson connectors from the red and black DC power wires from the Air Pack. Strip each wire end by 1⁄2 inch, twist the wire strands and tin the stripped area. Referring to Figure 11, insert the red wire fully into the left terminal and make sure that no bare wire is exposed (cut away as necessary) and tighten in place. Repeat for black wire but insert it into the right terminal. Connect the green wire to the ground stud in HVDC bay wall using an 8mm socket wrench. AC1-A CAUTION Ensure that the red wire is connected to the left terminal and black wire is connected to the right terminal, and no bare wire is exposed after connecting the red and black wires, as shown in Figure 11. 480038 Rev A (March 2008) Page 20 of 32 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
