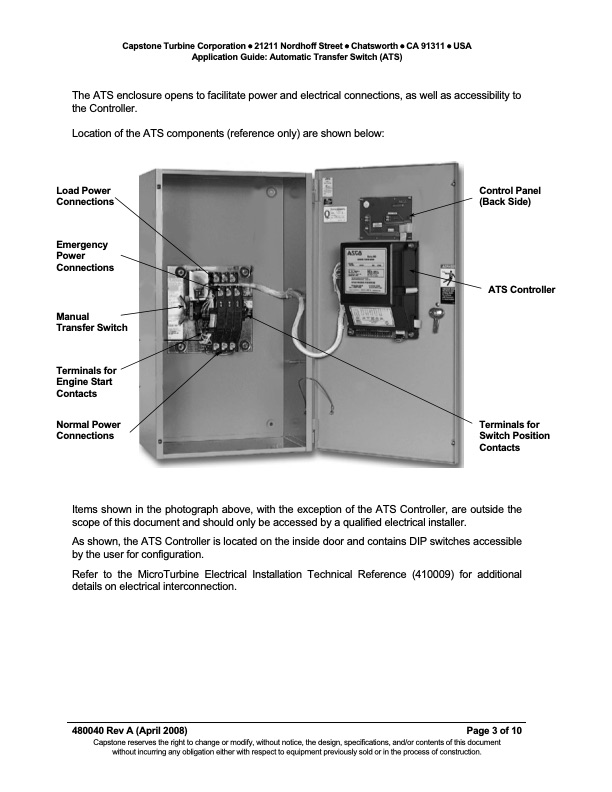

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Automatic Transfer Switch (ATS) The ATS enclosure opens to facilitate power and electrical connections, as well as accessibility to the Controller. Location of the ATS components (reference only) are shown below: Load Power Connections Emergency Power Connections Manual Transfer Switch Terminals for Engine Start Contacts Normal Power Connections Control Panel (Back Side) ATS Controller Items shown in the photograph above, with the exception of the ATS Controller, are outside the scope of this document and should only be accessed by a qualified electrical installer. As shown, the ATS Controller is located on the inside door and contains DIP switches accessible by the user for configuration. Refer to the MicroTurbine Electrical Installation Technical Reference (410009) for additional details on electrical interconnection. Control Panel Terminals for Switch Position Contacts 480040 Rev A (April 2008) Page 3 of 10 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Automatic Transfer Switch (ATS) Technical Information
