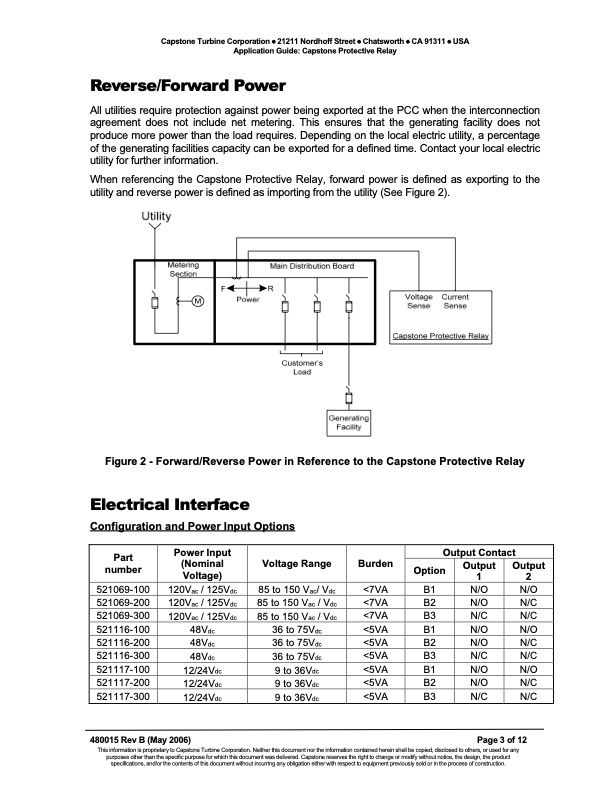

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone Protective Relay Reverse/Forward Power All utilities require protection against power being exported at the PCC when the interconnection agreement does not include net metering. This ensures that the generating facility does not produce more power than the load requires. Depending on the local electric utility, a percentage of the generating facilities capacity can be exported for a defined time. Contact your local electric utility for further information. When referencing the Capstone Protective Relay, forward power is defined as exporting to the utility and reverse power is defined as importing from the utility (See Figure 2). Figure 2 - Forward/Reverse Power in Reference to the Capstone Protective Relay Electrical Interface Configuration and Power Input Options Part number 521069-100 521069-200 521069-300 521116-100 521116-200 521116-300 521117-100 521117-200 521117-300 Power Input (Nominal Voltage) 120Vac / 125Vdc 120Vac / 125Vdc 120Vac / 125Vdc 48Vdc 48Vdc 48Vdc 12/24Vdc 12/24Vdc 12/24Vdc Output Contact Voltage Range 85 to 150 Vac/ Vdc 85 to 150 Vac / Vdc 85 to 150 Vac / Vdc 36 to 75Vdc 36 to 75Vdc 36 to 75Vdc 9 to 36Vdc 9 to 36Vdc 9 to 36Vdc Burden Option <7VA B1 <7VA B2 <7VA B3 <5VA B1 <5VA B2 <5VA B3 <5VA B1 <5VA B2 <5VA B3 Output Output 1 2 N/O N/O N/O N/C N/C N/C N/O N/O N/O N/C N/C N/C N/O N/O N/O N/C N/C N/C Page 3 of 12 480015 Rev B (May 2006) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Capstone Protective Relay
