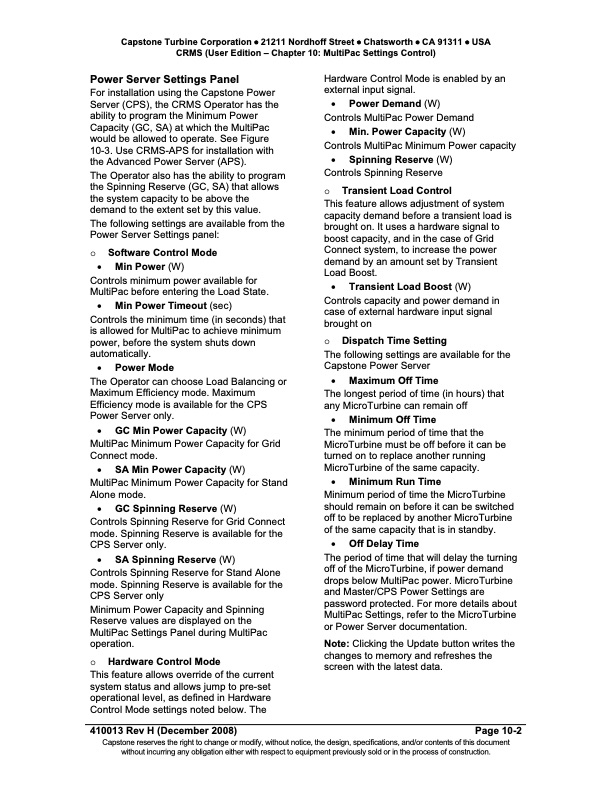

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 10: MultiPac Settings Control) Power Server Settings Panel For installation using the Capstone Power Server (CPS), the CRMS Operator has the ability to program the Minimum Power Capacity (GC, SA) at which the MultiPac would be allowed to operate. See Figure 10-3. Use CRMS-APS for installation with the Advanced Power Server (APS). The Operator also has the ability to program the Spinning Reserve (GC, SA) that allows the system capacity to be above the demand to the extent set by this value. The following settings are available from the Power Server Settings panel: Hardware Control Mode is enabled by an external input signal. Power Demand (W) Controls MultiPac Power Demand Min. Power Capacity (W) Controls MultiPac Minimum Power capacity Spinning Reserve (W) Controls Spinning Reserve o Transient Load Control This feature allows adjustment of system capacity demand before a transient load is brought on. It uses a hardware signal to boost capacity, and in the case of Grid Connect system, to increase the power demand by an amount set by Transient Load Boost. Transient Load Boost (W) Controls capacity and power demand in case of external hardware input signal brought on o Dispatch Time Setting The following settings are available for the Capstone Power Server Maximum Off Time The longest period of time (in hours) that any MicroTurbine can remain off Minimum Off Time The minimum period of time that the MicroTurbine must be off before it can be turned on to replace another running MicroTurbine of the same capacity. Minimum Run Time Minimum period of time the MicroTurbine should remain on before it can be switched off to be replaced by another MicroTurbine of the same capacity that is in standby. Off Delay Time The period of time that will delay the turning off of the MicroTurbine, if power demand drops below MultiPac power. MicroTurbine and Master/CPS Power Settings are password protected. For more details about MultiPac Settings, refer to the MicroTurbine or Power Server documentation. Note: Clicking the Update button writes the changes to memory and refreshes the screen with the latest data. Page 10-2 o Software Control Mode Min Power (W) Controls minimum power available for MultiPac before entering the Load State. Min Power Timeout (sec) Controls the minimum time (in seconds) that is allowed for MultiPac to achieve minimum power, before the system shuts down automatically. Power Mode The Operator can choose Load Balancing or Maximum Efficiency mode. Maximum Efficiency mode is available for the CPS Power Server only. GC Min Power Capacity (W) MultiPac Minimum Power Capacity for Grid Connect mode. SA Min Power Capacity (W) MultiPac Minimum Power Capacity for Stand Alone mode. GC Spinning Reserve (W) Controls Spinning Reserve for Grid Connect mode. Spinning Reserve is available for the CPS Server only. SA Spinning Reserve (W) Controls Spinning Reserve for Stand Alone mode. Spinning Reserve is available for the CPS Server only Minimum Power Capacity and Spinning Reserve values are displayed on the MultiPac Settings Panel during MultiPac operation. o Hardware Control Mode This feature allows override of the current system status and allows jump to pre-set operational level, as defined in Hardware Control Mode settings noted below. The 410013 Rev H (December 2008) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
