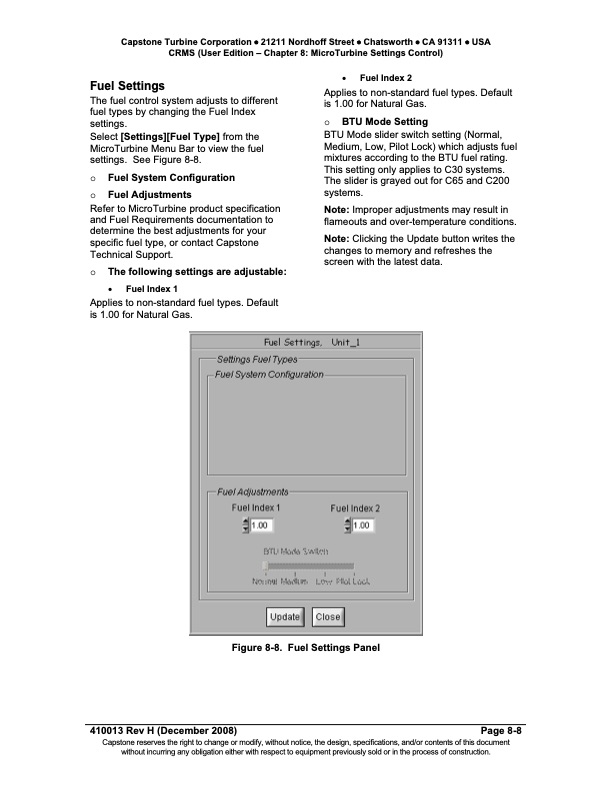

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 8: MicroTurbine Settings Control) Fuel Settings The fuel control system adjusts to different fuel types by changing the Fuel Index settings. Select [Settings][Fuel Type] from the MicroTurbine Menu Bar to view the fuel settings. See Figure 8-8. o Fuel System Configuration o Fuel Adjustments Refer to MicroTurbine product specification and Fuel Requirements documentation to determine the best adjustments for your specific fuel type, or contact Capstone Technical Support. o The following settings are adjustable: Fuel Index 1 Applies to non-standard fuel types. Default is 1.00 for Natural Gas. Fuel Index 2 Applies to non-standard fuel types. Default is 1.00 for Natural Gas. o BTU Mode Setting BTU Mode slider switch setting (Normal, Medium, Low, Pilot Lock) which adjusts fuel mixtures according to the BTU fuel rating. This setting only applies to C30 systems. The slider is grayed out for C65 and C200 systems. Note: Improper adjustments may result in flameouts and over-temperature conditions. Note: Clicking the Update button writes the changes to memory and refreshes the screen with the latest data. Figure 8-8. Fuel Settings Panel 410013 Rev H (December 2008) Page 8-8 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
