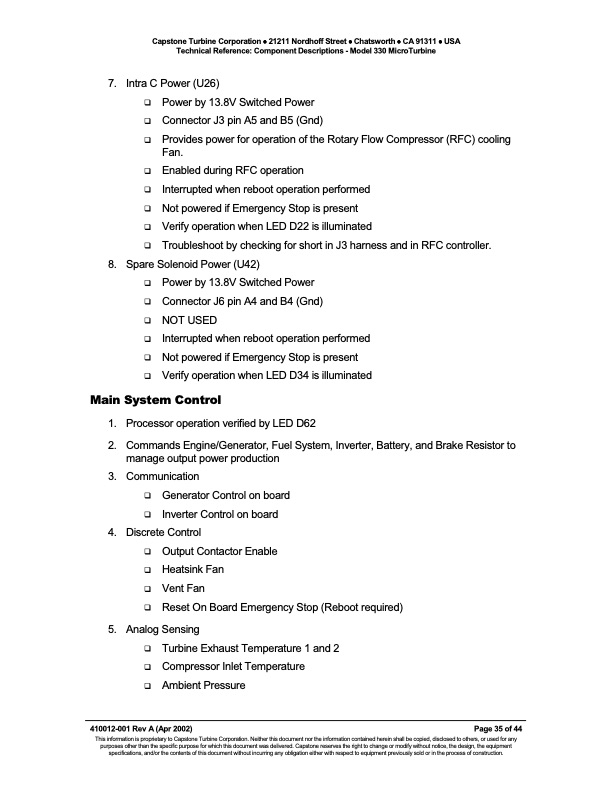

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model 330 MicroTurbine 7. Intra C Power (U26) Power by 13.8V Switched Power Connector J3 pin A5 and B5 (Gnd) Provides power for operation of the Rotary Flow Compressor (RFC) cooling Fan. Enabled during RFC operation Interrupted when reboot operation performed Not powered if Emergency Stop is present Verify operation when LED D22 is illuminated Troubleshoot by checking for short in J3 harness and in RFC controller. 8. Spare Solenoid Power (U42) Power by 13.8V Switched Power Connector J6 pin A4 and B4 (Gnd) NOT USED Interrupted when reboot operation performed Not powered if Emergency Stop is present Verify operation when LED D34 is illuminated Main System Control Processor operation verified by LED D62 Commands Engine/Generator, Fuel System, Inverter, Battery, and Brake Resistor to manage output power production 3. Communication Generator Control on board Inverter Control on board 4. Discrete Control Output Contactor Enable Heatsink Fan Vent Fan Reset On Board Emergency Stop (Reboot required) Analog Turbine Exhaust Temperature 1 and 2 Compressor Inlet Temperature Ambient Pressure 410012-001 Rev A (Apr 2002) Sensing This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 35 of 44PDF Image | Technical Reference Component Descriptions Capstone Model 330 MicroTurbine
