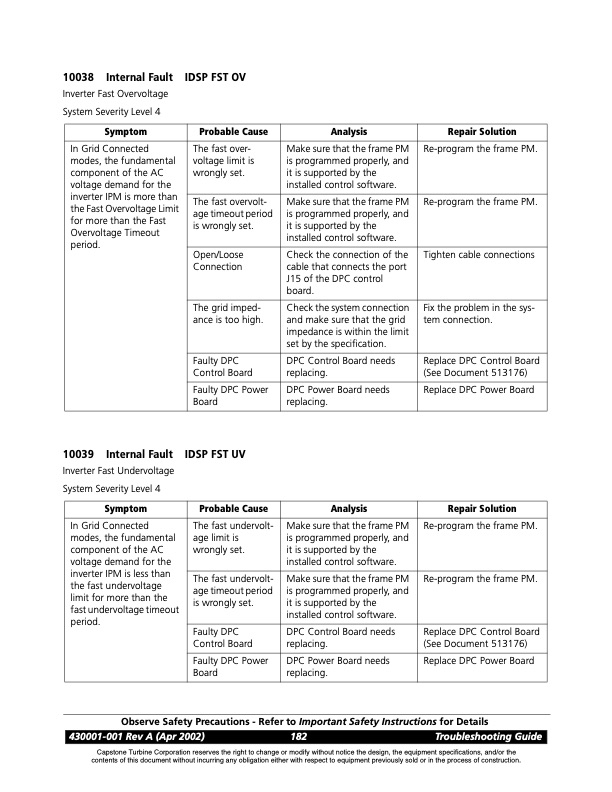

10038 Internal Fault Inverter Fast Overvoltage System Severity Level 4 IDSP FST OV Symptom Probable Cause Analysis Repair Solution In Grid Connected modes, the fundamental component of the AC voltage demand for the inverter IPM is more than the Fast Overvoltage Limit for more than the Fast Overvoltage Timeout period. The fast over- voltage limit is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. The fast overvolt- age timeout period is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. Open/Loose Connection Check the connection of the cable that connects the port J15 of the DPC control board. Tighten cable connections The grid imped- ance is too high. Check the system connection and make sure that the grid impedance is within the limit set by the specification. Fix the problem in the sys- tem connection. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board 10039 Internal Fault Inverter Fast Undervoltage System Severity Level 4 IDSP FST UV Symptom Probable Cause Analysis Repair Solution In Grid Connected modes, the fundamental component of the AC voltage demand for the inverter IPM is less than the fast undervoltage limit for more than the fast undervoltage timeout period. The fast undervolt- age limit is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. The fast undervolt- age timeout period is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev A (Apr 2002) 182 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
