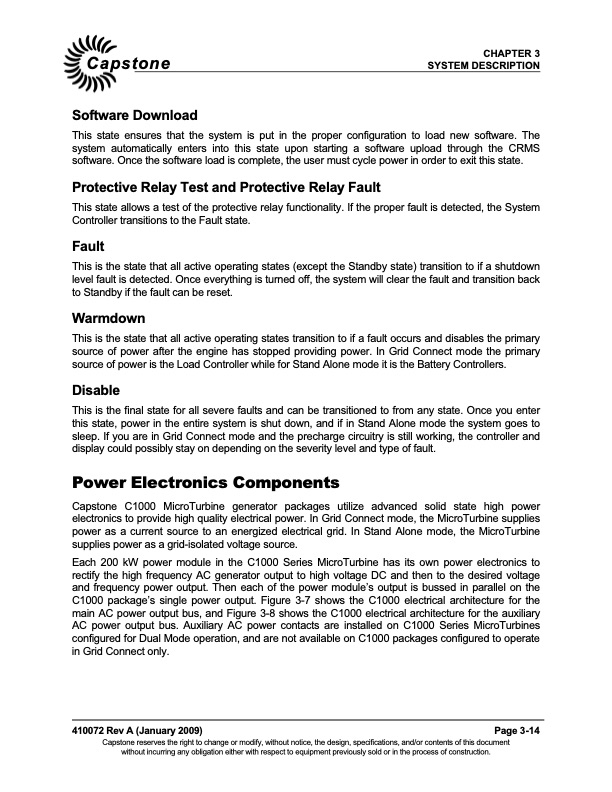

CHAPTER 3 Capstone SYSTEM DESCRIPTION Software Download This state ensures that the system is put in the proper configuration to load new software. The system automatically enters into this state upon starting a software upload through the CRMS software. Once the software load is complete, the user must cycle power in order to exit this state. Protective Relay Test and Protective Relay Fault This state allows a test of the protective relay functionality. If the proper fault is detected, the System Controller transitions to the Fault state. Fault This is the state that all active operating states (except the Standby state) transition to if a shutdown level fault is detected. Once everything is turned off, the system will clear the fault and transition back to Standby if the fault can be reset. Warmdown This is the state that all active operating states transition to if a fault occurs and disables the primary source of power after the engine has stopped providing power. In Grid Connect mode the primary source of power is the Load Controller while for Stand Alone mode it is the Battery Controllers. Disable This is the final state for all severe faults and can be transitioned to from any state. Once you enter this state, power in the entire system is shut down, and if in Stand Alone mode the system goes to sleep. If you are in Grid Connect mode and the precharge circuitry is still working, the controller and display could possibly stay on depending on the severity level and type of fault. Power Electronics Components Capstone C1000 MicroTurbine generator packages utilize advanced solid state high power electronics to provide high quality electrical power. In Grid Connect mode, the MicroTurbine supplies power as a current source to an energized electrical grid. In Stand Alone mode, the MicroTurbine supplies power as a grid-isolated voltage source. Each 200 kW power module in the C1000 Series MicroTurbine has its own power electronics to rectify the high frequency AC generator output to high voltage DC and then to the desired voltage and frequency power output. Then each of the power module’s output is bussed in parallel on the C1000 package’s single power output. Figure 3-7 shows the C1000 electrical architecture for the main AC power output bus, and Figure 3-8 shows the C1000 electrical architecture for the auxiliary AC power output bus. Auxiliary AC power contacts are installed on C1000 Series MicroTurbines configured for Dual Mode operation, and are not available on C1000 packages configured to operate in Grid Connect only. 410072 Rev A (January 2009) Page 3-14 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C1000 MICROTURBINE SYSTEMS TECHNICAL REFERENCE
